Earthing of
data centres

The basic requirement for the secure operation of all electrical systems in a data centre are a functional earthing system and equipotential bonding. By the implementation phase, everything must be right – retrospective corrections are almost impossible.

Steel stripConnecting clampRebar clipConnection clamps/Wall bushingRound wireCross unitAnti-corrosion tapeEarthing pipe clampEquipotential bonding barEarthing pipe clampSteel stripConnecting clampRebar clipConnection clamps/Wall bushingRound wireCross unitAnti-corrosion tapeEarthing pipe clampEquipotential bonding barEarthing pipe clamp

Product recommendations

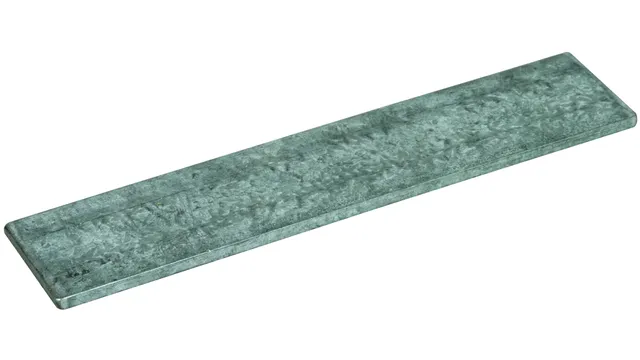

Strip 30x3.5mm St/tZn coil length 25m +/-5% - 852335

852335

Steel strip

According to DIN EN 62561-2 (VDE 0185-561-2), for use in earthing systems, lightning protection systems and in ring equipotential bonding.

Add  Details

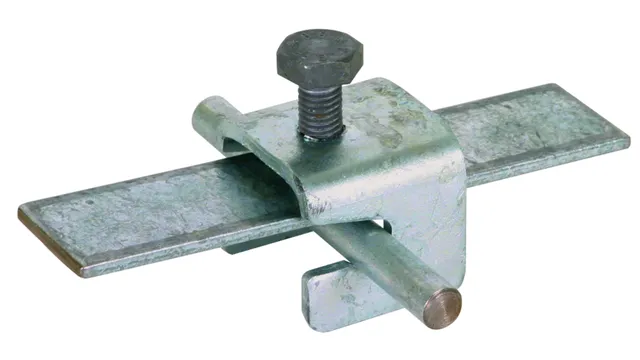

Connecting clamp, St/tZn for building reinforcements for Rd 6-10mm/Fl 30mm - 308026

308026

Connecting clamp

For connecting reinforcing steel mesh or reinforcements with round and flat conductors. For T, cross and parallel connections.

Add  Details

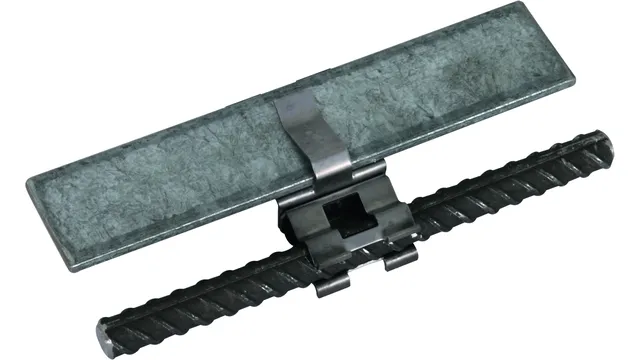

DEHNclip reinforcement clamp St/bare f. Rd 8mm / Rd 10mm - 308141

308141

Rebar clip

DEHNclip – for the quick connection of earth electrodes and reinforcements without tools.

Add  Details

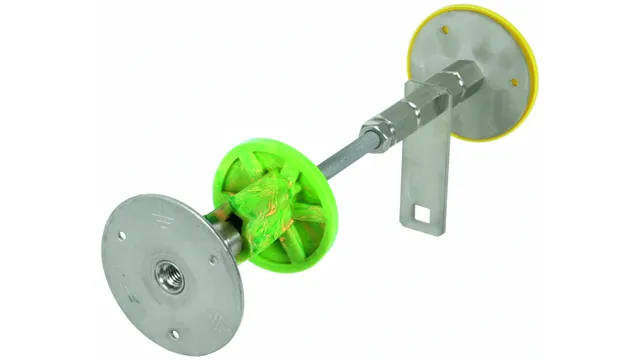

Waterproof wall bushing for thicknesses 300-400mm StSt (V4A) - 478540

478540

Wall bushing

Water-pressure-tight for watertight concrete construction.

Add  Details

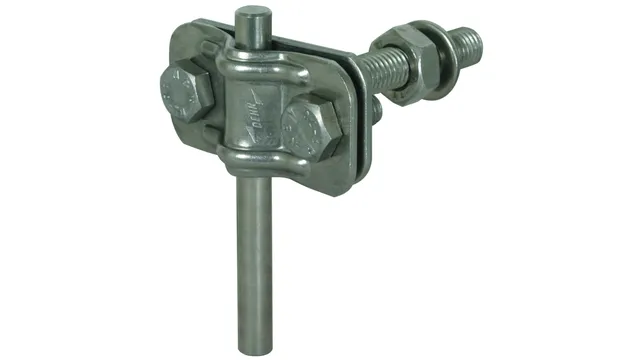

Terminal for fixed earthing point M10 f. Rd 8-10/Fl 30mm StSt (V4A) - 478129

478129

Connection clamps

For connecting round and flat conductors to fixed earthing terminals. Light version, M10, with threaded pin

Add  Details
Round wire 10mm StSt (1.4404) Coil length 80m +/-5% - 860010

860010

Round wire

For use in lightning protection and earthing systems. As per DIN EN 62561-2 (VDE 0185-561-2).

Add  Details

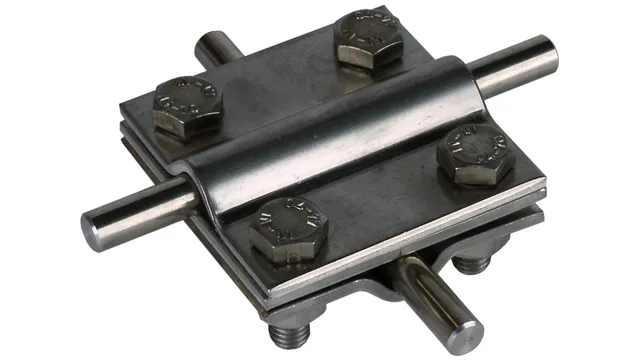

Cross unit StSt(V4A) Rd 8-10/8-10mm Rd 8-10/Fl 30mm-Fl 30/30mm, interm. pl. - 319209

319209

Cross unit

For above-ground and underground connections.

Add  Details

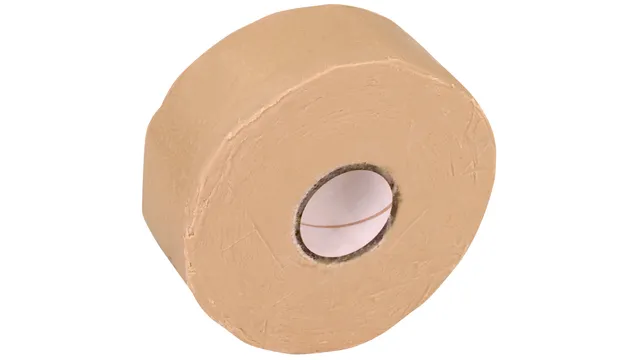

Anti-corrosion tape W 50mm L 10m - 556125

556125

Anti-corrosion tape

For wrapping above-ground and underground connections in accordance with the requirements of DIN 12068. In reels, length 10 m, UV-stabilised.

Add  Details

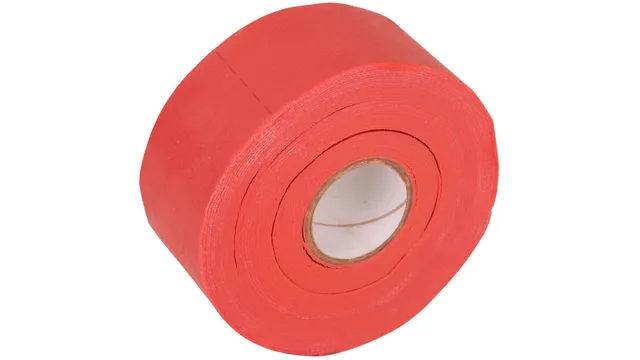

Anti-corrosion tape B 50mm L 10m red, perforated - 557125

557125

Anti-corrosion tape with perforation

Anti-corrosion tape with perforation for the enclosure of above and underground connections. For use in the ground. Comes in 10-m-long reels. UV-stabilised.

Add  Details

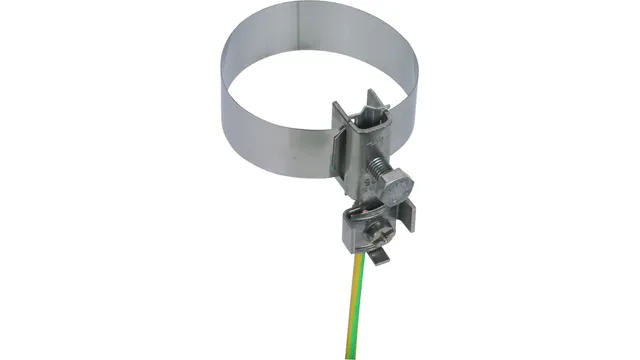

Earthing pipe clamp D 27-168mm with connection clamp 2 x 4-25mm² StSt - 540912

540912

Earthing pipe clamp

For integrating pipes into the protective and functional equipotential bonding as per DIN VDE 0100-410/540, with infinitely adjustable tensioning strap.

Add  Details

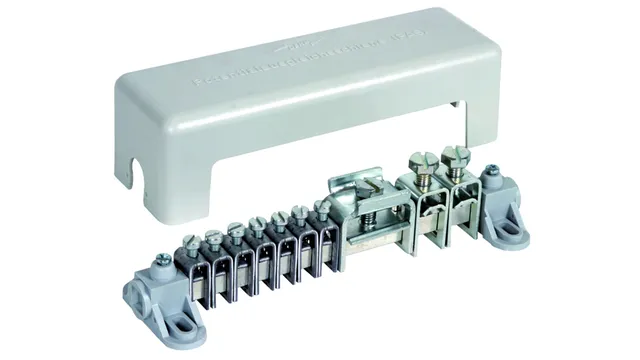

Equipotential bonding bar with cover 7x 2.5-25mm² 2x16-95mm² 1x Fl 30x4mm - 563010

563010

Equipotential bonding bar

For protective and functional equipotential bonding as per DIN VDE 0100-410/540 and lightning equipotential bonding as per DIN EN 62305-3 (VDE 0185-305-3).

Add  Details

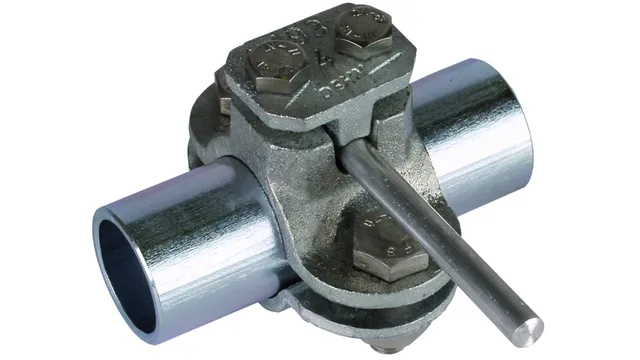

Earthing pipe clamp D 48mm w. connect. clamp Rd 4-10mm MCI / St/tZn - 407112

407112

Earthing pipe clamp

For integrating pipes into the protective and functional equipotential bonding as per DIN VDE 0100-410/540 and the lightning equipotential bonding as per DIN EN 62305-3 (VDE 0185-305-3).

Add  Details

Note about standards

For the installation of earthing systems and equipotential bonding networks for buildings, BS 18014 and BS EN 50310 apply, for example. In conjunction with lightning protection  systems taking an LEMP concept into account, the requirements of BS EN 62305-3 and -4 must also be heeded.
