HVI ultra Conductor

High-voltage-resistant, insulated down conductor, for maintaining the separation distance to live parts. For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material). Specially designed for the American market.

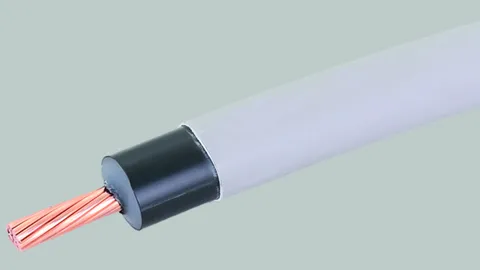

HVI ultra Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts as per IEC 2305-3:2024. Furthermore, the inner conductor cross-section complies with NFPA 780.

For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material).

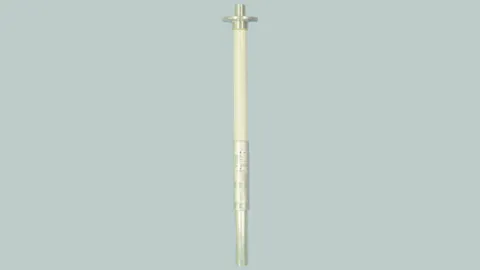

Supporting tubes for HVI ultra Conductor

Supporting tube WITHOUT internal sealing end.

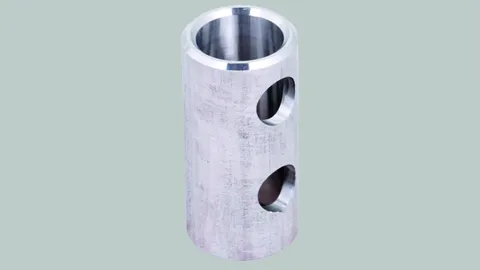

Connection elements for HVI ultra Conductor

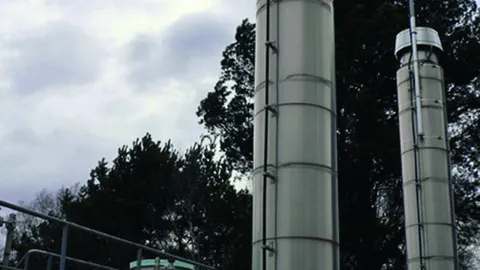

Conductor holder for HVI ultra Conductor in hazardous areas

The HVI power Conductor is a product suitable for use in the potentially explosive atmospheres Ex zone 1 (gases, vapours, mists) and Ex zone 21 (dusts). Certified in accordance with DIN EN 60079-0 and DIN EN 60079-14.
The special installation conditions safely prevent electric sparks to neighbouring metal parts when lightning current flows through the HVI ultra Conductor.
The HVI ultra Conductor has to be installed in explosion hazardous areas in accordance with the installation instructions.

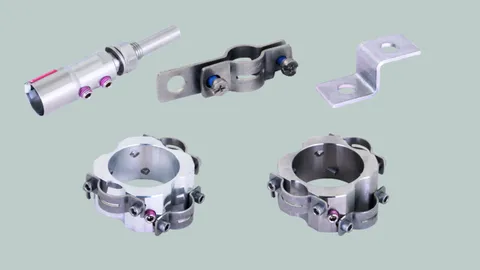

Accessories for HVI ultra

Accessories for HVI power Conductor / HVI power long Conductor

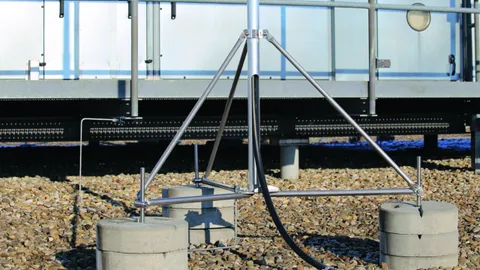

Tripods for Supporting Tubes with Side Outlet

Stands for holding HVI supporting tubes for internally/externally routed HVI Conductors in/on the supporting tube, with double clamp for connection of 2x Rd 8–10 mm. Adjustable to the roof slope up to max. 10° using a variable fixing on the base holder.

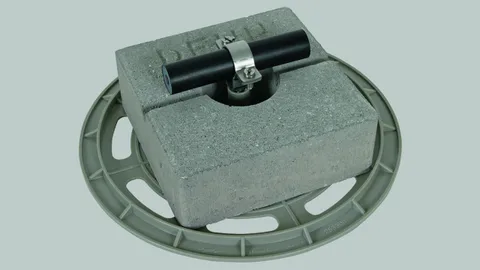

The stackable concrete bases, the plastic base plates and the base holder set for holding additional concrete bases are each available separately in the accessories.

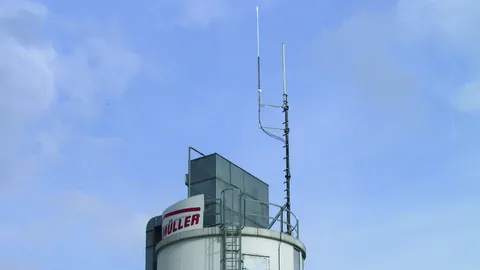

Spacers for Omnidirectional Antennas

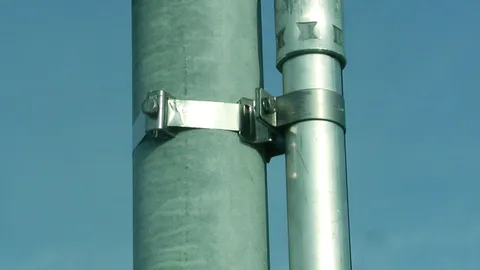

Fixing Elements for Supporting Tubes
