DEHNrapid LSA – Lightning Current / Surge Arrester

Variable protection for 1 to 10 pairs in LSA systems of the 2/10 series
LSA disconnection block function integrated in the lightning current arrester allows protected testing, disconnecting and patching
Modular system of lightning current and surge arresters can be combined to a single combined arrester

Details

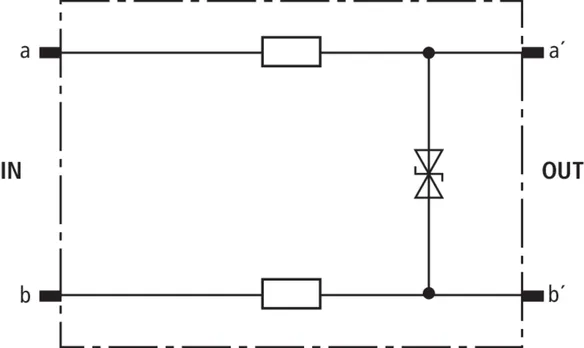

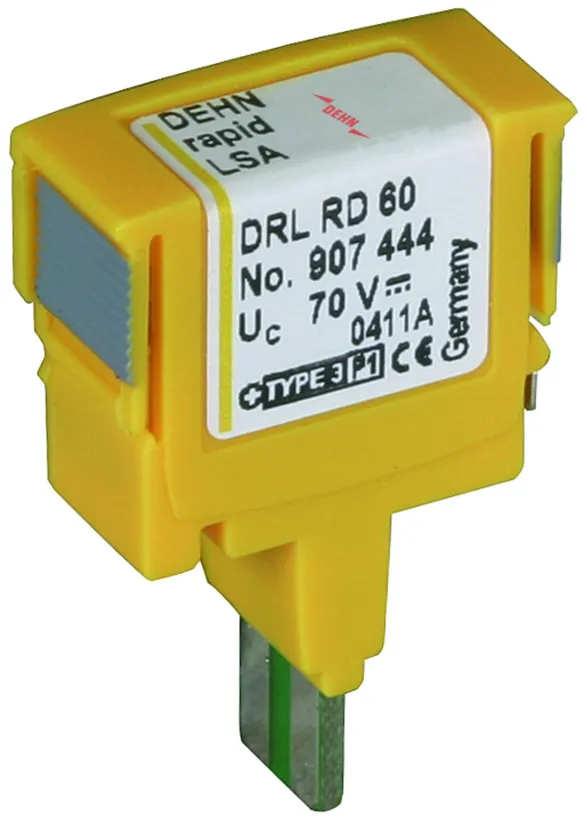

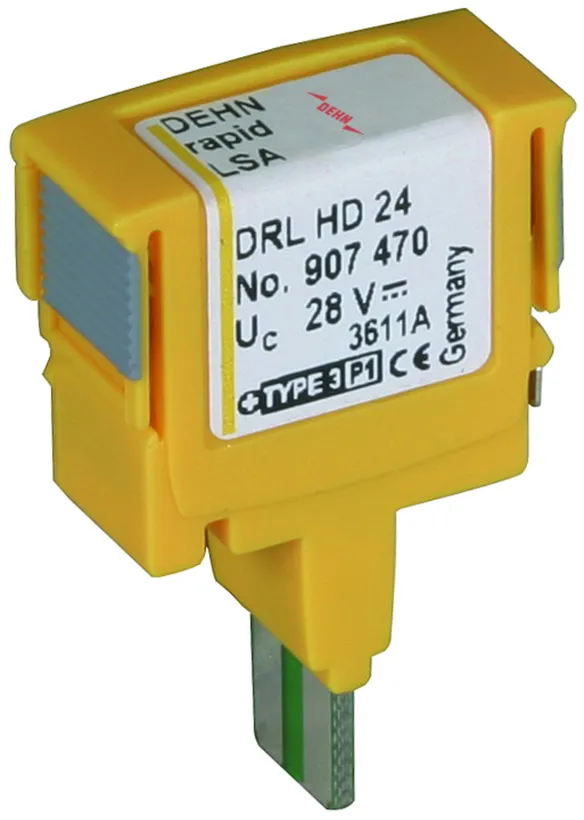

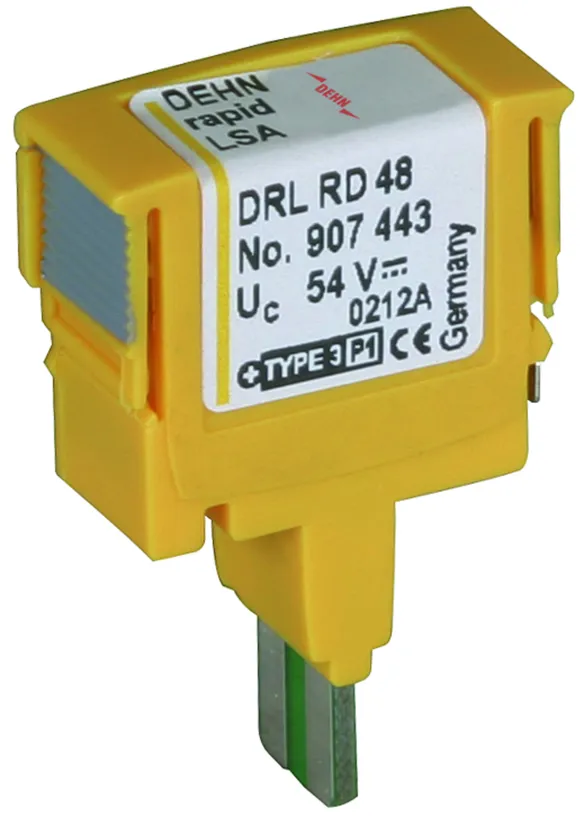

Application-specific surge protection modules for protecting terminal equipment.

lorem ipsum — Application-specific surge protection modules for protecting terminal equipment.

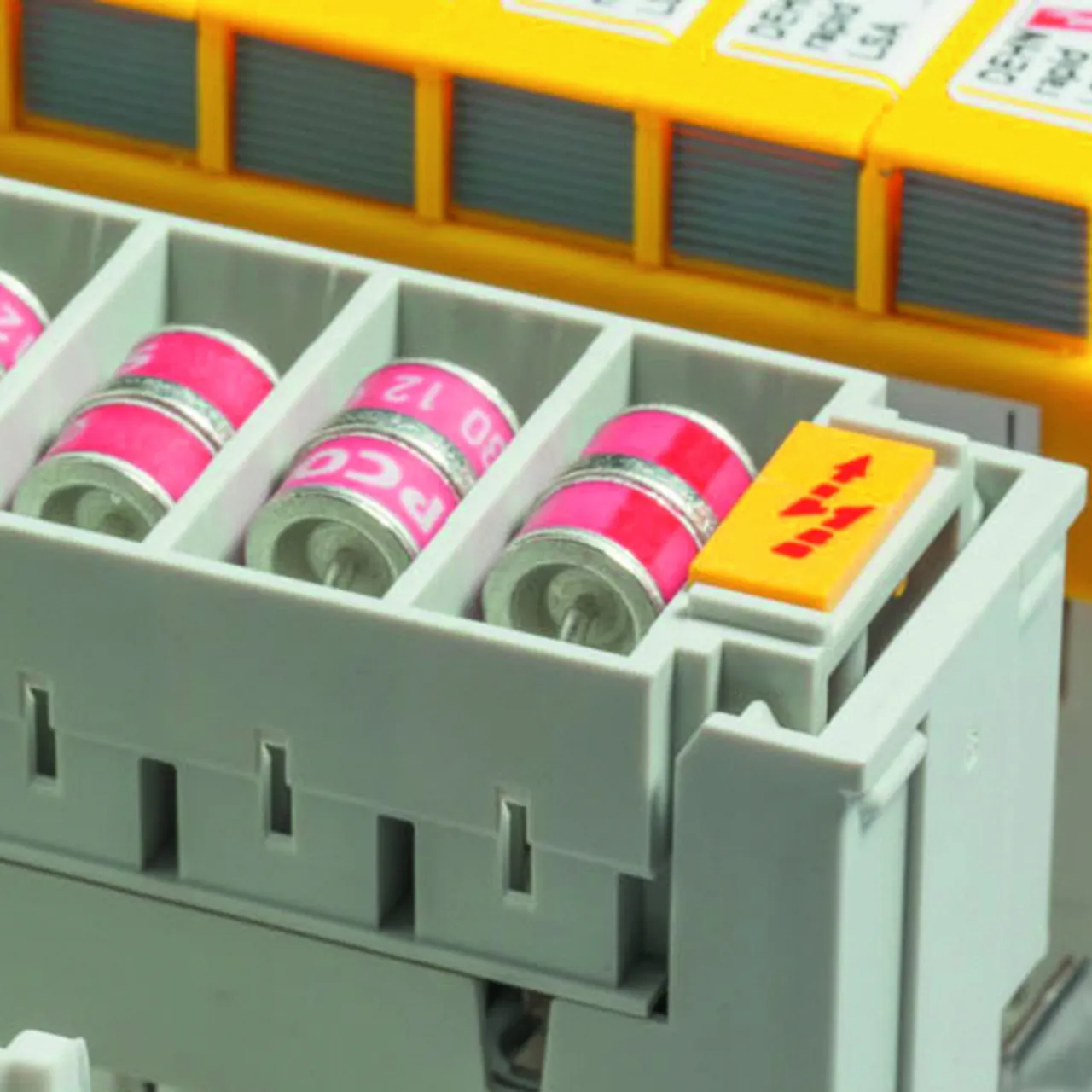

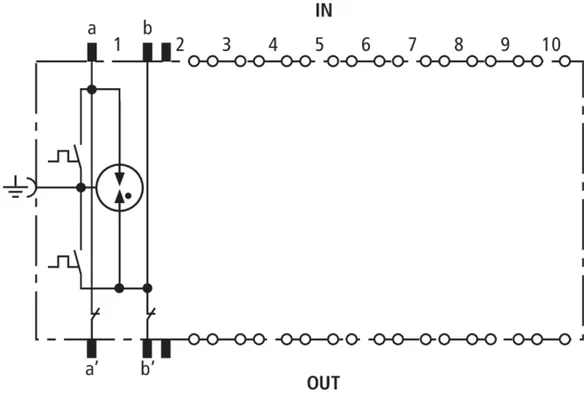

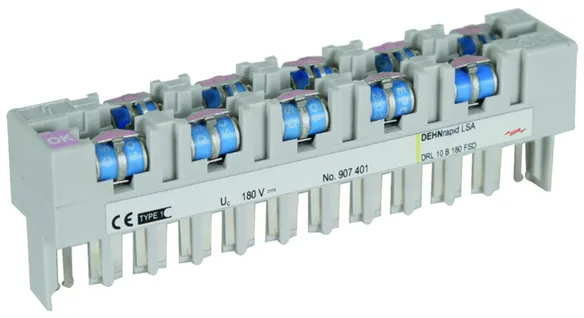

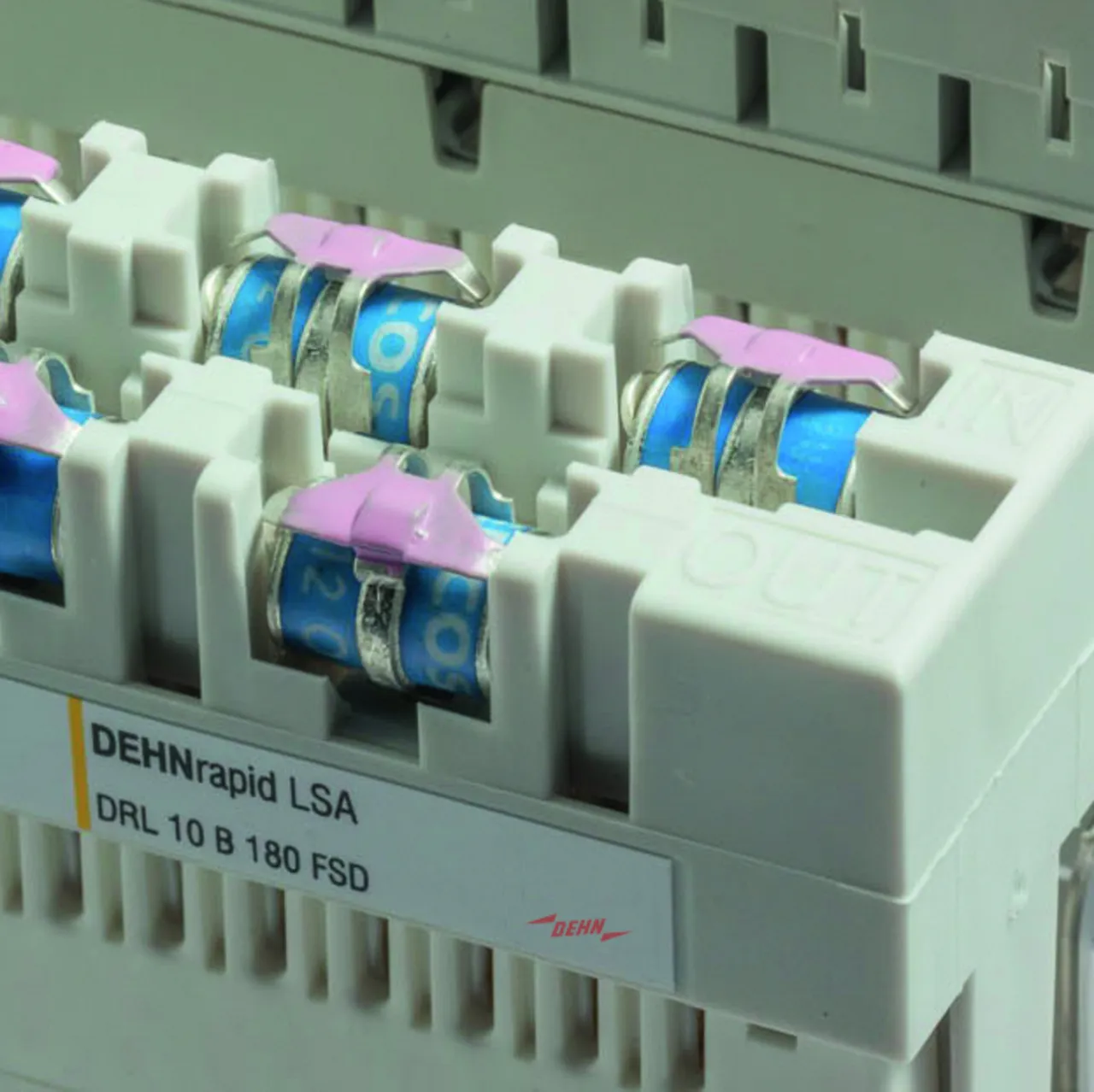

Lightning current carrying SPD block with gas discharge tubes optionally available with visual fault indication and fail-safe function.

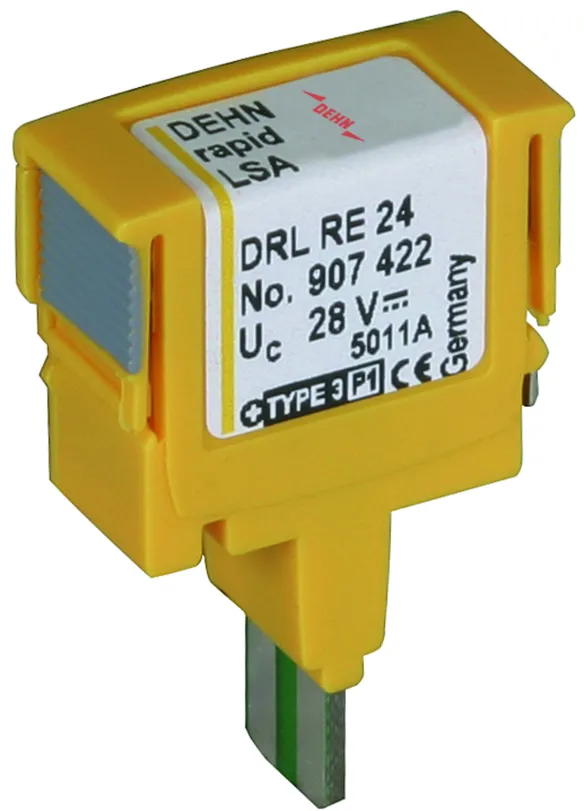

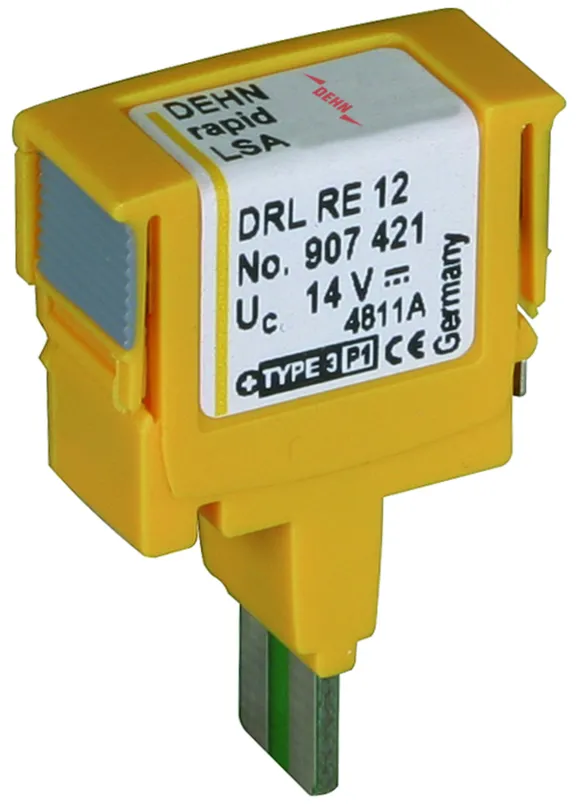

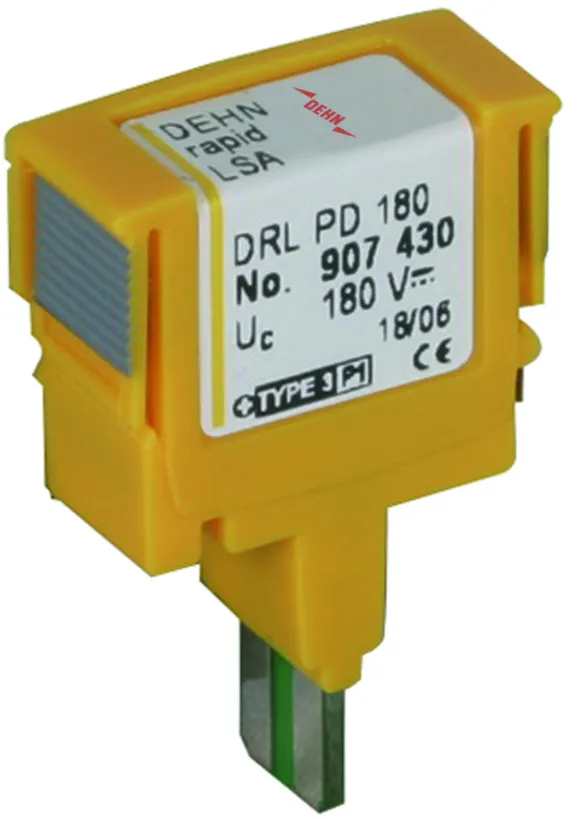

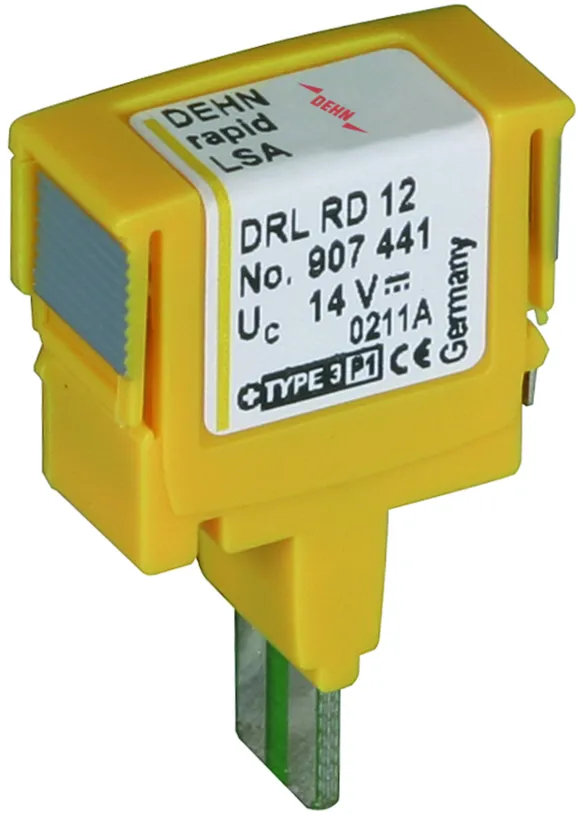

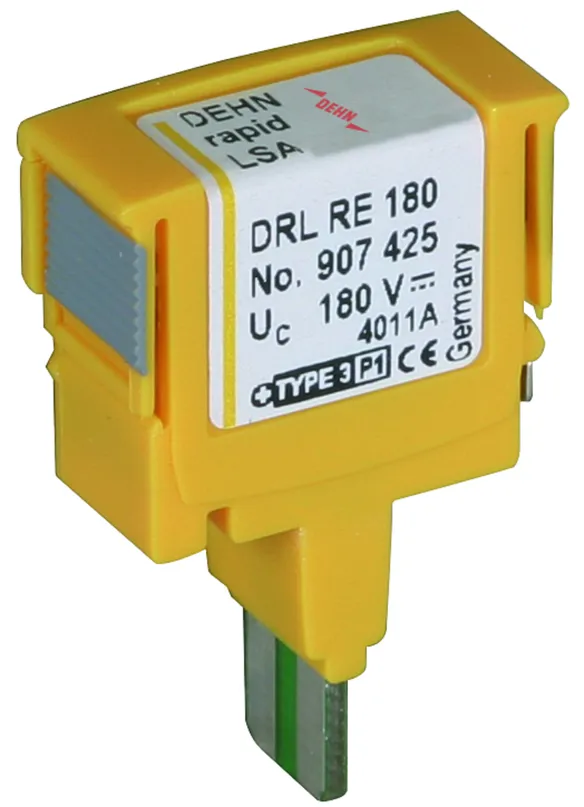

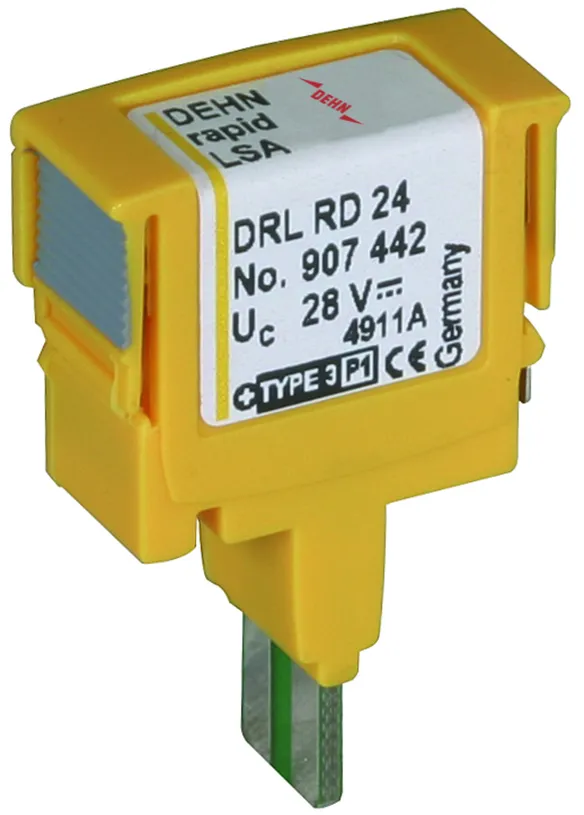

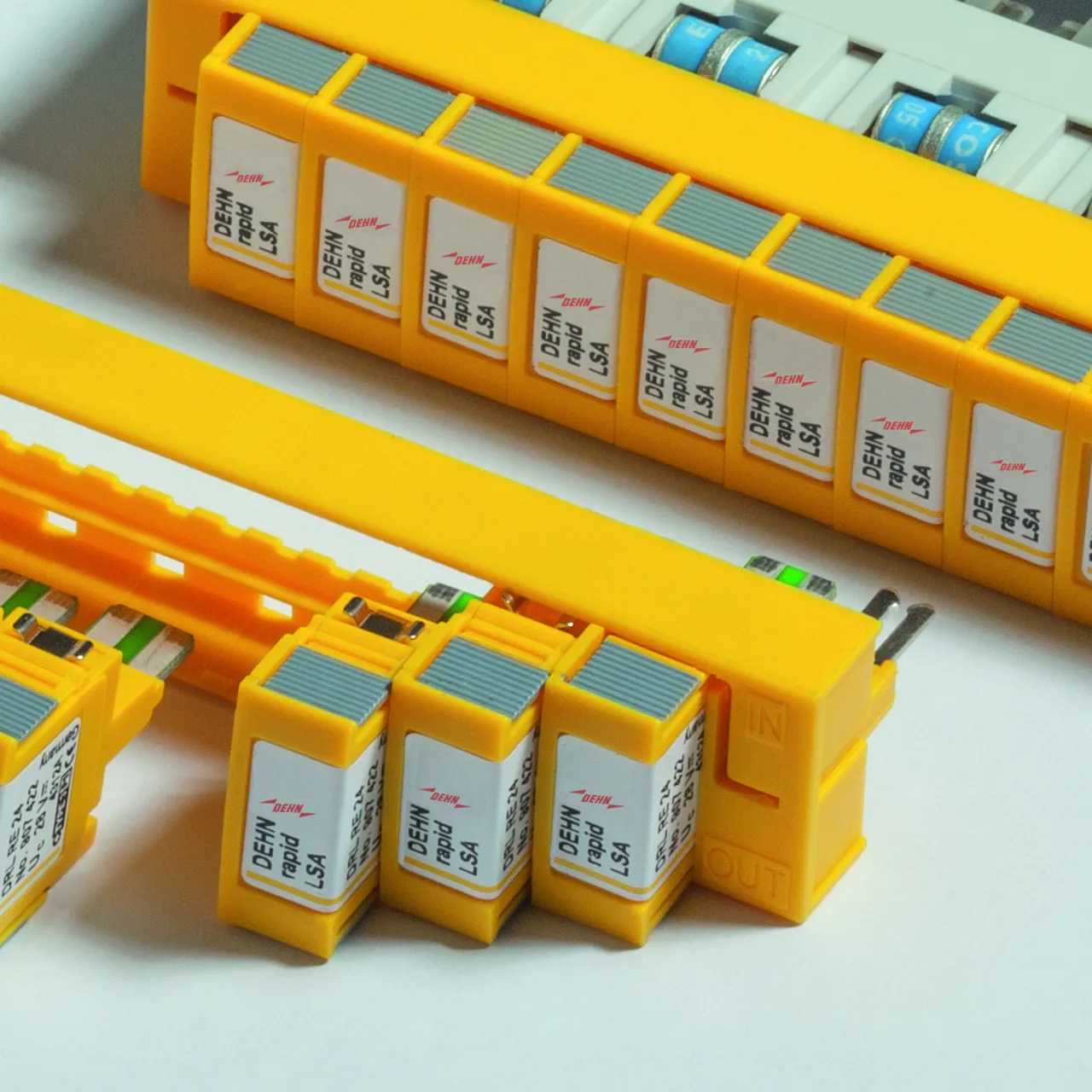

Pluggable surge arresters in the form of protection magazines can be plugged into terminal or disconnection blocks.

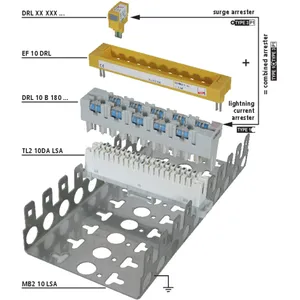

Modular design consisting of a plug-in SPD block with gas discharge tubes, earthing frame and application-specific protection modules.

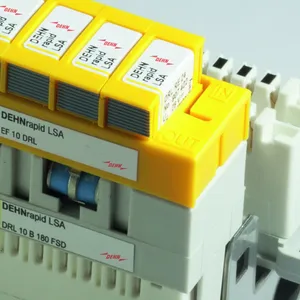

Combined lightning current and surge arrester for LSA terminal blocks.

DRL 10 B

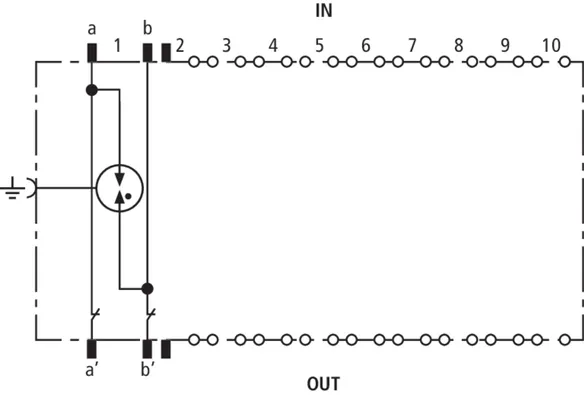

Lightning current carrying DRL plug-in SPD block (10 pairs) with three-pole gas discharge tubes for almost all applications. Expandable to a combined lightning current and surge arrester by means of a DRL protective plug. The integrated disconnection block contacts allow testing, measuring and patching with plugged-in protection.

1 ??store.product_de??

??store.product.number.short_de?? 907400 DRL 10 B 180

??store.product.gtin_de?? 4013364107557, ??store.product.customsTariffNumber_de??: 85363010, ??store.product.grossWeight_de??: 69.90 g, ??store.product.packaging_de??: 1.00 pc(s)
