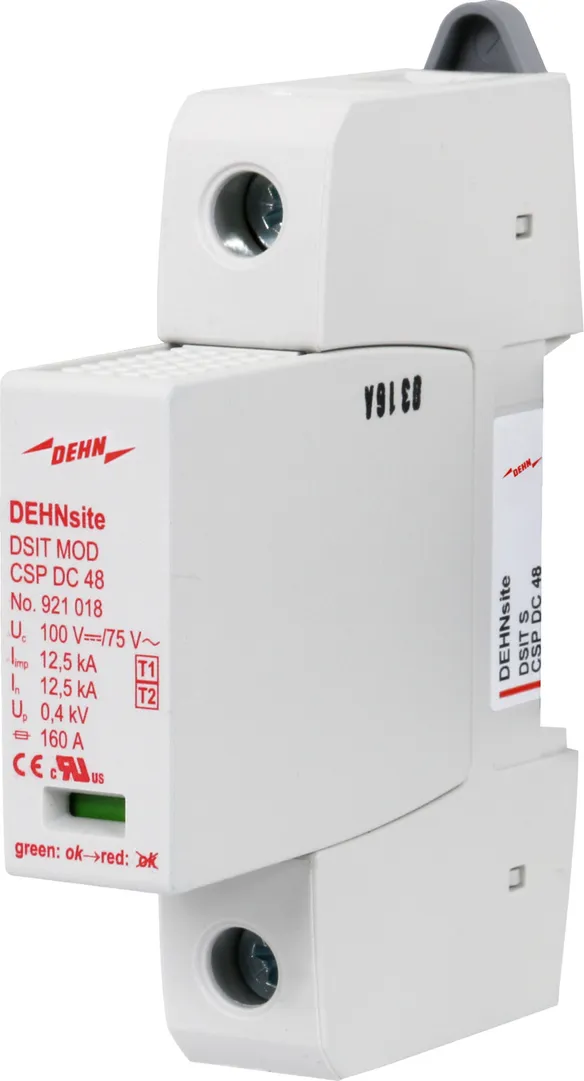

DEHNsite

DSIT S CSP

1 Product

GTIN 4013364269958, Customs tariff No. (EU): 85363090, Gross weight: 137.40 g, PU: 1.00 pc(s)

Images

Additional information

Certificates

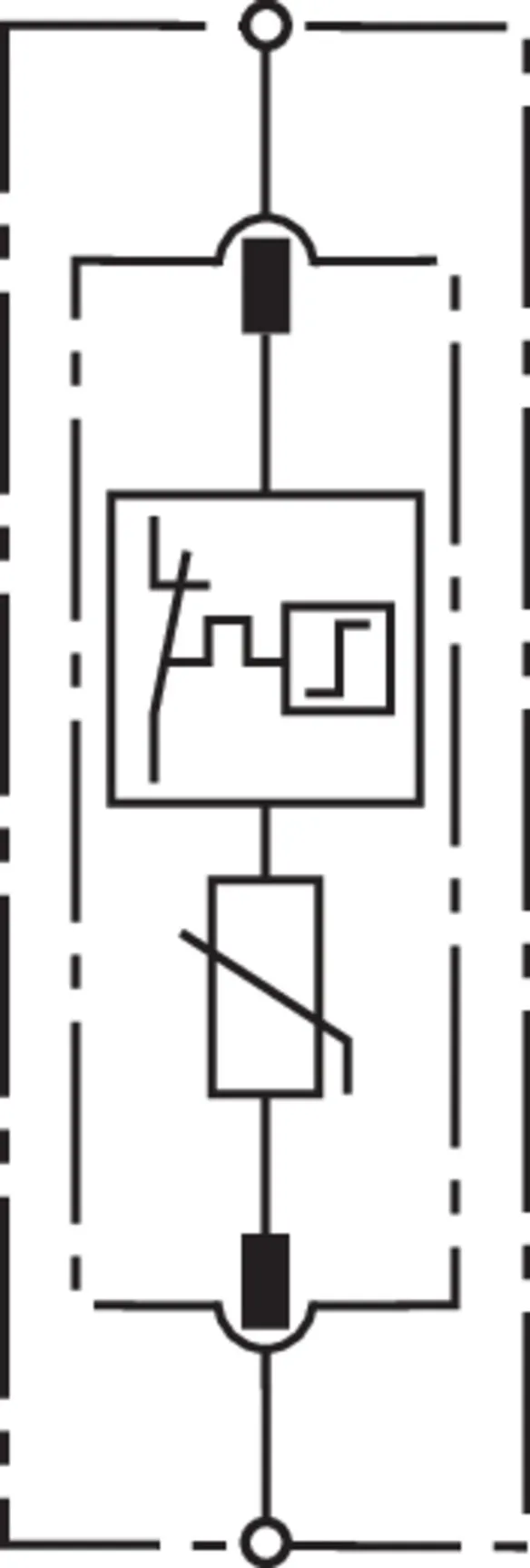

Technical data

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Nominal voltage (d.c.) (U_N )	48 V
Nominal voltage (a.c.) (U_N )	60 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	100 V
Max. continuous operating voltage (a.c.) (U_C )	75 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) (I_imp )	12.5 kA
Specific energy (W/R)	39.06 kJ/Ohm
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Max. discharge current (8/20 µs) (I_max )	60 kA
Voltage protection level (U_P )	≤ 0.4 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	160 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1

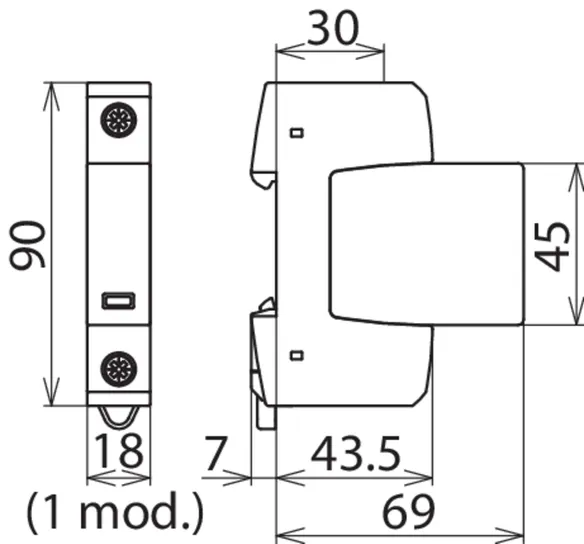

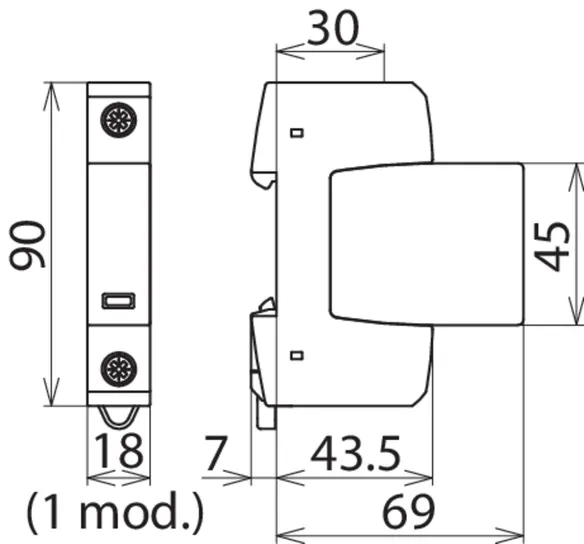

Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, gray, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	1 module(s), DIN 43880
Approvals	UL
Test values according to UL 1449	---------------------------------
– SPD classification according to UL 1449	type 1 component assembly
– Voltage Protection Rating (VPR)	0,3 kV
– Nominal discharge current (8/20µs) ( I_n )	20 kA
