Phase Connecting Elements for Switchgear Installations

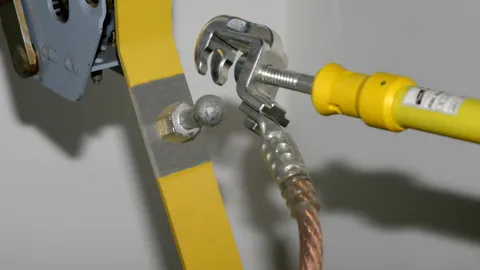

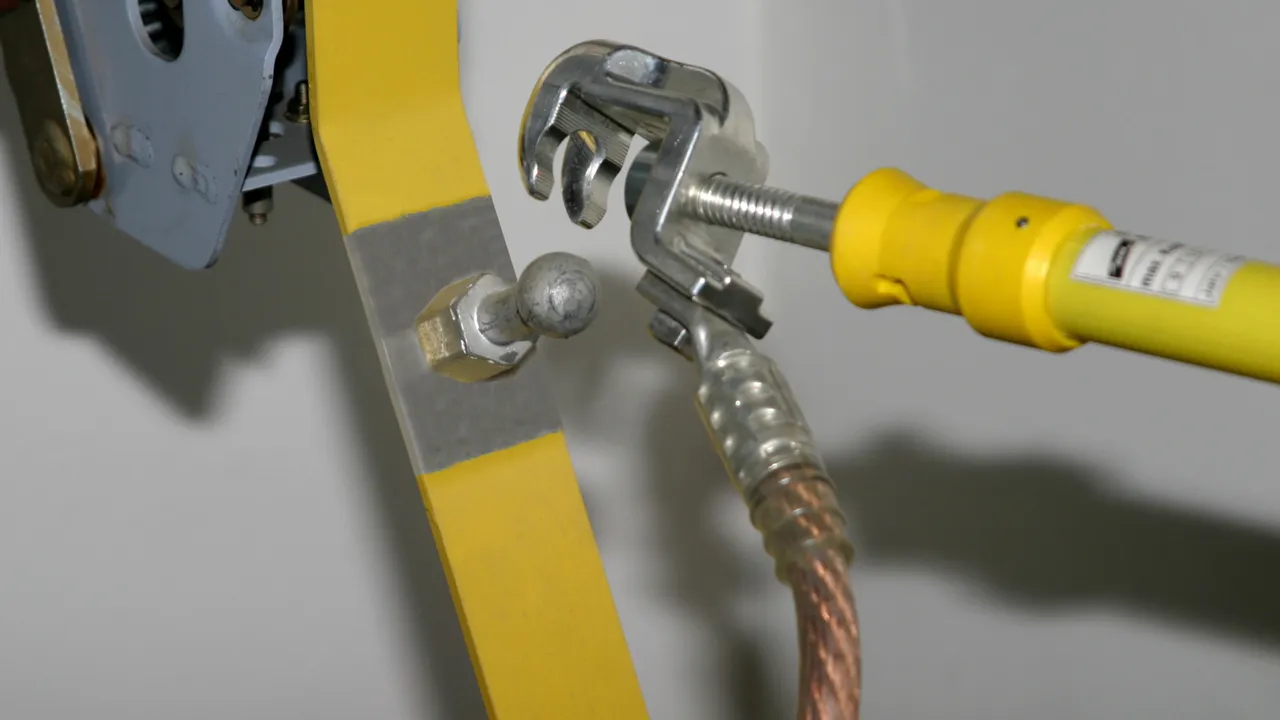

  • To be fitted to the phase cable end of single-pole to five-pole earthing and short-circuiting devices

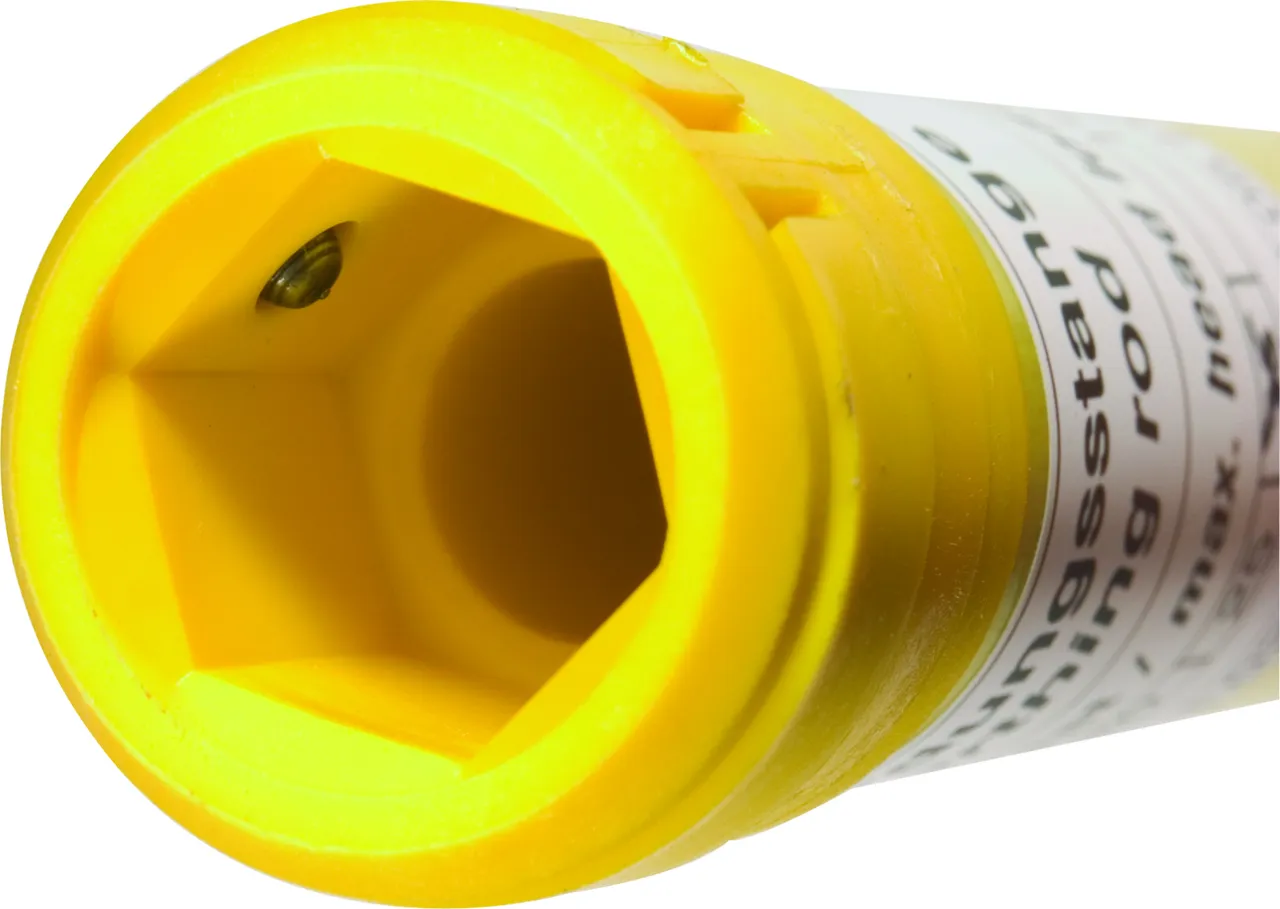

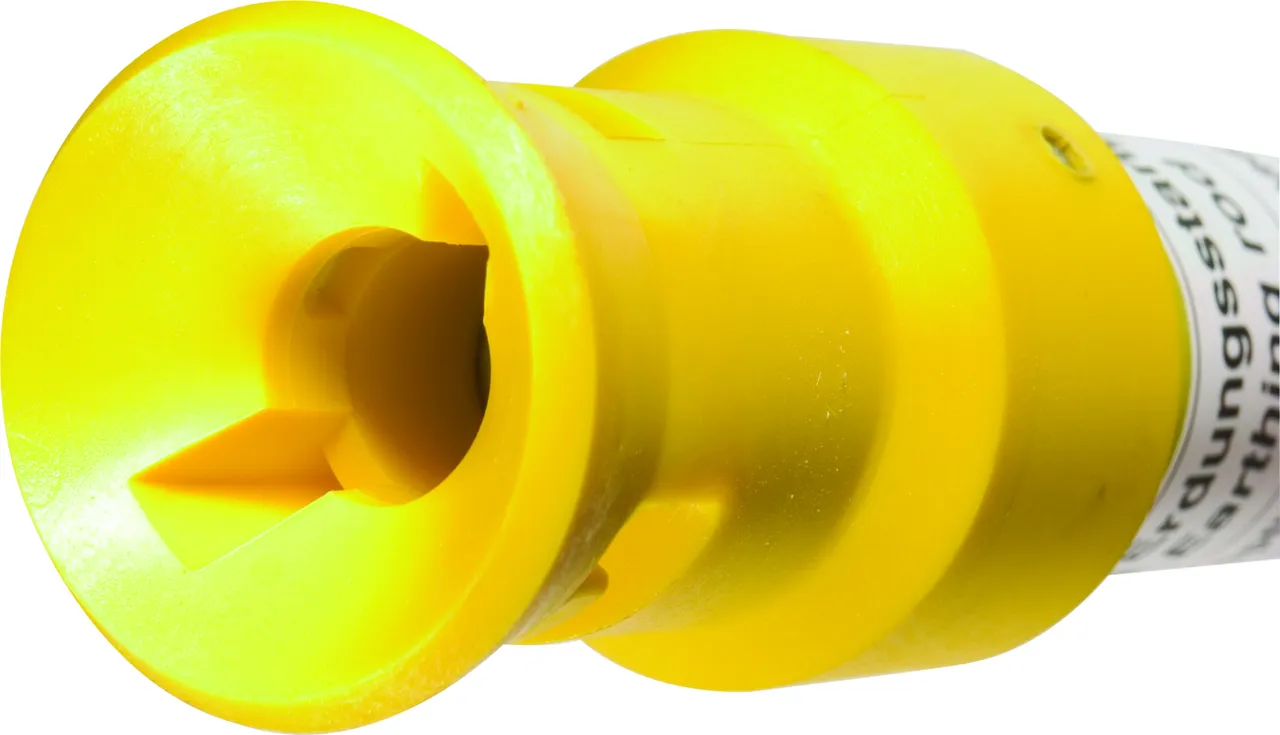

  • Type PK1 anti-rotation protection
  • Other earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Details

Rigid ball head cap.
lorem ipsum
lorem ipsum
lorem ipsum
lorem ipsum
lorem ipsum
lorem ipsum
lorem ipsum

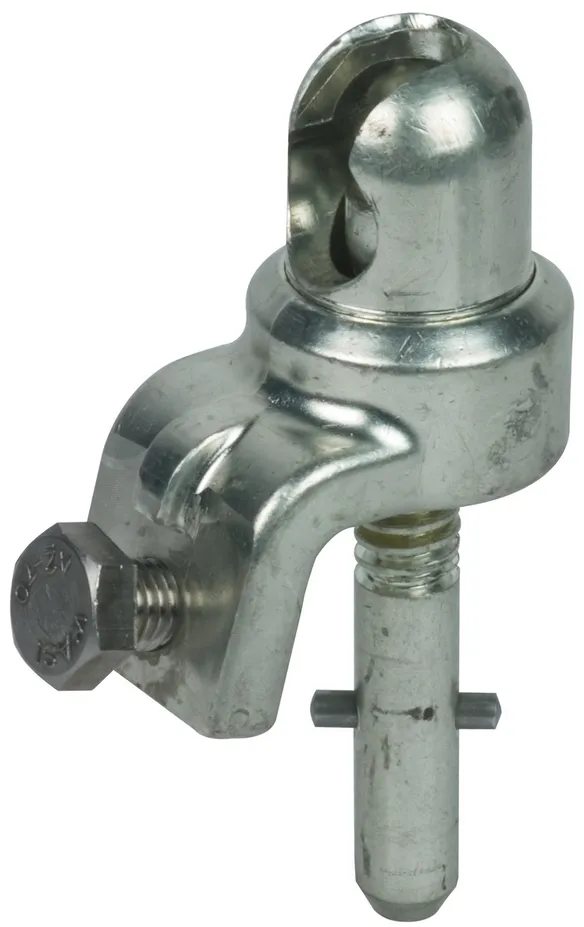

Adjustable ball head cap (4x 90°).
lorem ipsum

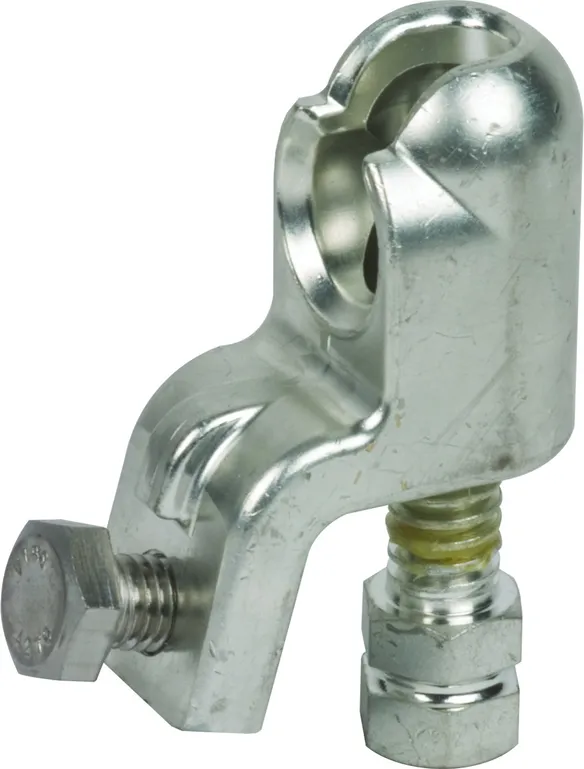

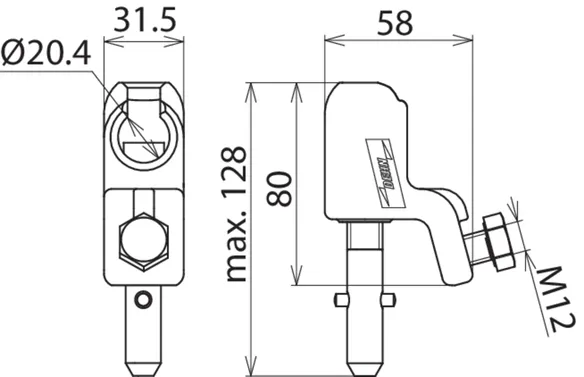

Rigid Ball Head Cap, Hexagon Shaft

2 Products

Part No. 772310 KKH 20 SK

GTIN 4013364057593, Customs tariff No. (EU): 85359000, Gross weight: 469.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 20 mm
Anti-rotation protection PK1
For cable cross-section Cu 16 ... 120 mm2
Max. short-circuit current Ik 0.5 s 33.5 kA
Max. short-circuit current Ik 1 s 23.7 kA

Product 772310 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

Part No. 772320 KKH 25 SK

GTIN 4013364057432, Customs tariff No. (EU): 85359000, Gross weight: 785.00 g, PU: 1.00 pc(s)
