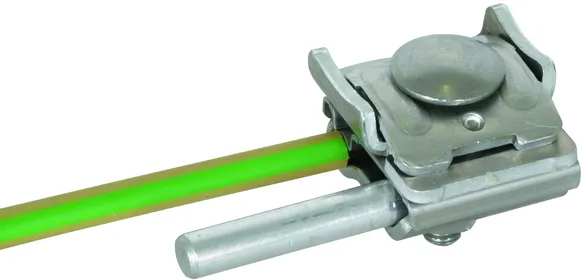

UNI Saddle Clamp

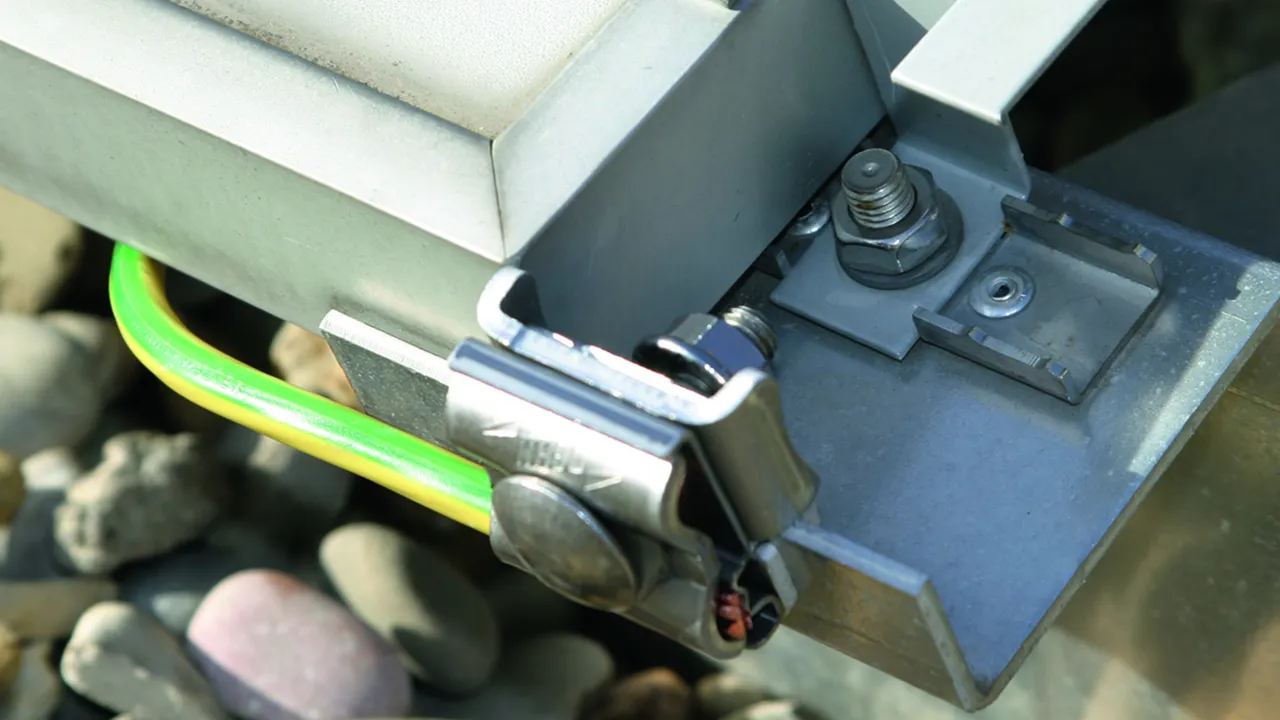

For integrating mounting systems, e.g. of PV installations, in the functional equipotential bonding / functional earthing ( black conductor possible) and lightning equipotential bonding according to IEC/EN 62305-3.

The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.
The double clamp design allows easy and quick interconnection of the profiles, e.g. by feed-through wiring.

With M8 screw and self-locking nut

1 Product

Part No. 365250 UNI FK 8.10 KBF0.7 8 AL V2A

GTIN 4013364148307, Customs tariff No. (EU): 85359000, Gross weight: 85.00 g, PU: 50.00 pc(s)
