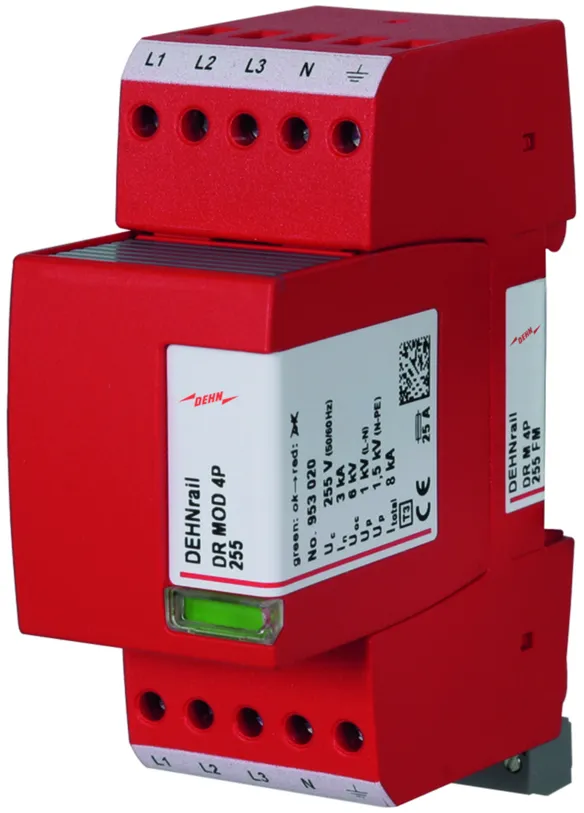

DEHNrail modular, multipole

Four-pole surge arrester consisting of a base part and a plug-in protection module
High discharge capacity due to heavy-duty zinc oxide varistor / spark gap combination
Energy coordination with other arresters of the Red/Line product family
Operating state / fault indication by green / red indicator flag in the inspection window
Easy replacement of protection modules without tools due to module locking system with module release button
Nominal load currents up to 25 A
Vibration and shock-tested in accordance with EN 60068-2

Details

DEHN rail M 4P ... (FM)

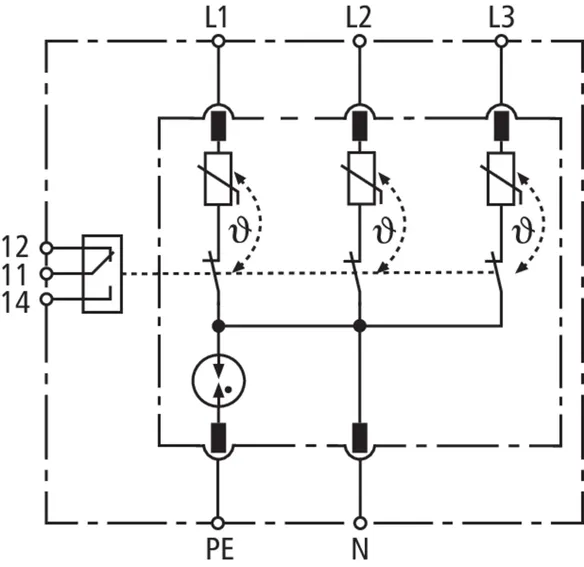

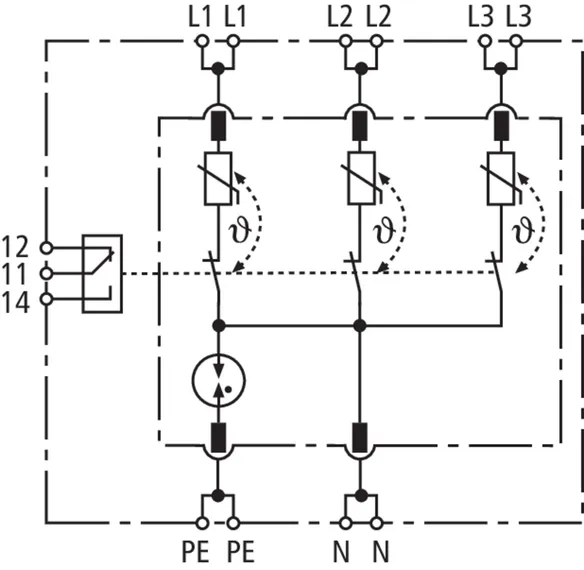

Four-pole surge arrester consisting of a base part and a plug-in protection module for 230 / 400 V systems; FM version with floating remote signalling contact.
