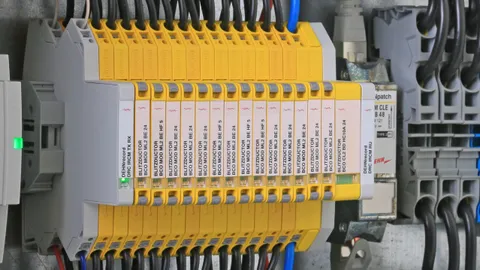

BLITZDUCTORconnect – Modular

Lightning current and surge arrester for universal use

protecting measuring and control circuits, bus and telecommunication systems
High total discharge capacity of 3 kA (10/350 µs), 10 kA (8/20 µs)
Max. impulse current carrying capability (8/20 µs) I_max up to 20 kA
Low voltage protection level, also capable of protecting terminal equipment

Arrester separable into module and base part

Fast and simple conductor connection thanks to push-in connection terminals
All protection components integrated in the module
secR release buttons on both sides for safe module replacement
High system availability thanks to fail-safe performance

Function-optimised design with a width of 6 mm

LifeCheck and visual status indication integrated in the module
Simple remote signalling of the status with the help of an optional remote signalling unit
Tool-free signal circuit disconnection for maintenance purposes
Vibration and shock-tested for safe operation

Details

**Maximum system availability**
Approvals for use in intrinsically safe measuring circuits

lorem ipsum — **Maximum system availability**
Approvals for use in intrinsically safe measuring circuits

**Connect = Protect**
Simple status message with monitoring unit for arrester groups

**Securely locked** – **precisely removed**
secR release buttons on both sides for safe handling

**Quickly tested – at a glance**
Integrated indication for easy and fast maintenance

BCO ML2 B 180

Space-saving, modular lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables. With signal disconnection for maintenance purposes.
