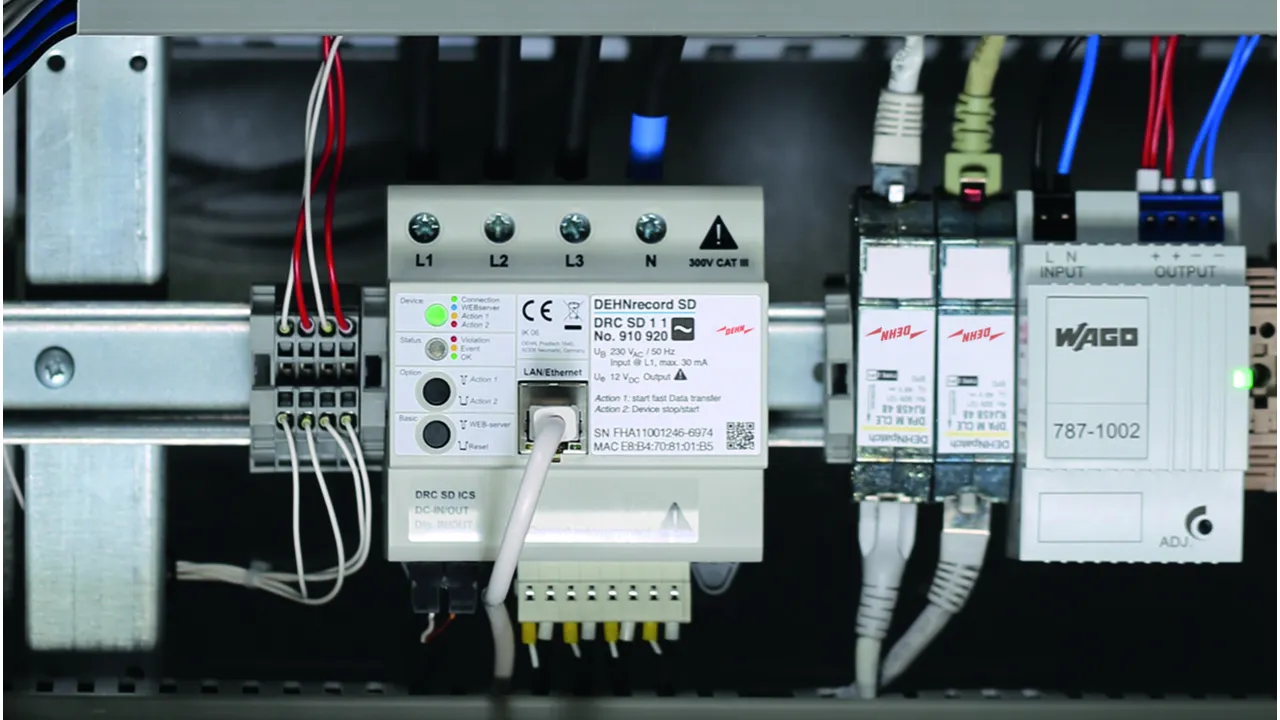

DEHNrecord SD

  • Multifunctional measuring equipment based on edge computing
  • 230 V AC supply voltage, alternatively 24 V DC external
  • Compact dimensions (5 modules) for simple integration and retrofitting
  • Installation benefits thanks to adaption to SPDs via busbar
  • Voltage quality measurement according to EN 61000-4-30, class-A-certified
  • Limit values according to EN 50160
  • Option of additional definition of individual PQ limit values
  • Measurement of temporary / power-frequency overvoltages according to EN50550
  • Measurement of load profile and power
  • Integrated digital inputs and outputs, logically linkable
  • Communication link through Modbus TCP and MQTT 3.1 Azure

Further information

Similar topics

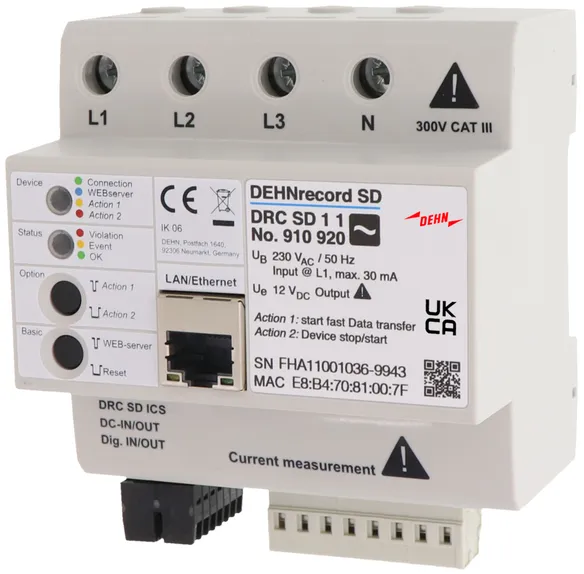

DRC SD 1 1

Multifunctional measurement and analysis device for monitoring voltage quality

1 Product

Part No. 910920 DRC SD 1 1

GTIN 4013364460263, Customs tariff No. (EU): 90303200, Gross weight: 510.02 g, PU: 1.00 pc(s)
