Discharge and Equipotential Bonding Devices

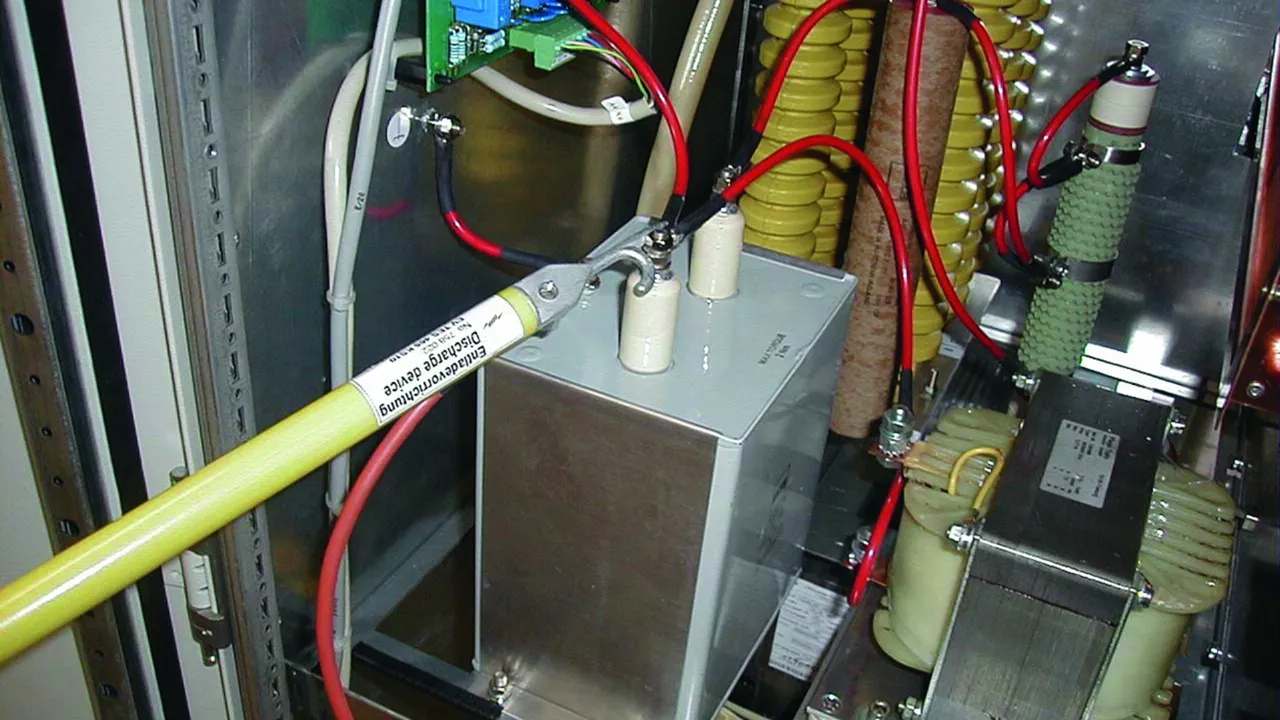

  • For discharging static charges
  • Different contact electrodes
  • Coupling electrode, especially for round conductors (Ø12 ... 26.5 mm) of electrostatic precipitator systems
  • Waterproof, plastic-sheathed cable entries, with additional anti-kink protection

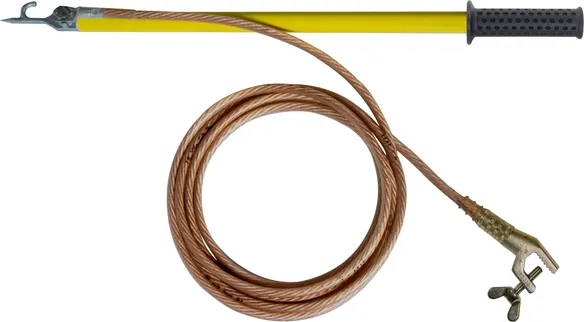

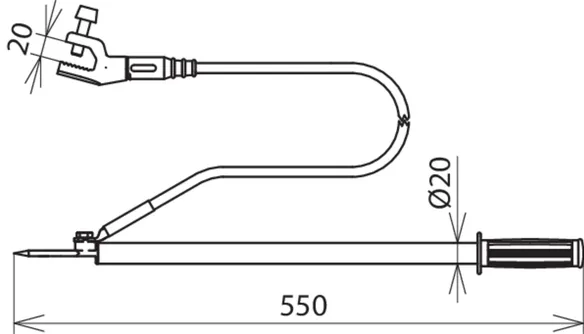

Discharge Device with Handle and Earth Clamp with Wing Bolt

1 Product

Part No. 758020 EV TES 465 EK

GTIN 4013364098992, Customs tariff No. (EU): 85369095, Gross weight: 1.44 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 465 mm
Total length (lG ) 550 mm
Clamping range Up to 20 mm
Material (contact and coupling electrode) Zamak

Product 758020 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

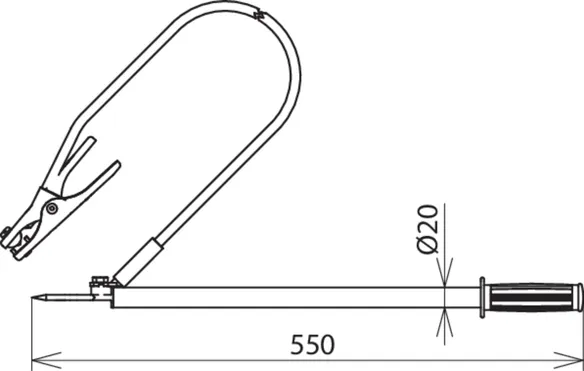

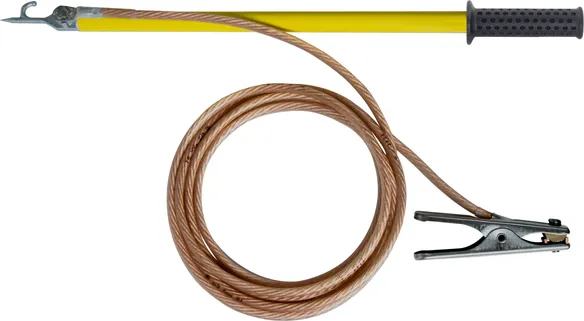

Discharge Device with Handle and Spring-loaded Earth Pliers

1 Product

Part No. 758021 EV TES 465 EZ

GTIN 4013364099005, Customs tariff No. (EU): 85369095, Gross weight: 1.20 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 465 mm
Total length (lG ) 550 mm
Clamping range Rd / Fl up to Ø16 mm / to 13 mm
Material (contact and coupling electrode) Zamak

Product 758021 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

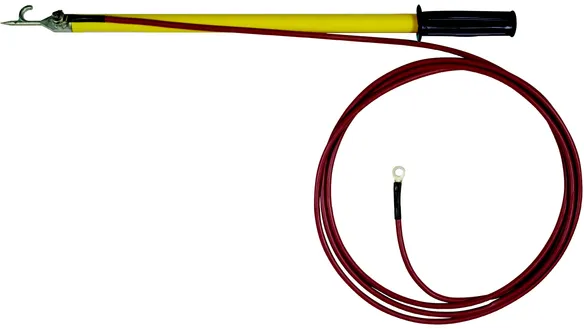

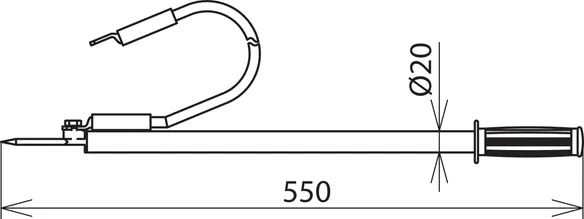

Discharge Device with Handle and Cable Lug at the Earth Cable End

Hole (Ø8.4 mm) and silicone cable

1 Product

Part No. 758022 EV TES 465 KS10

GTIN 4013364099012, Customs tariff No. (EU): 85369095, Gross weight: 750.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 10 mm2
Cable sheath Red silicone cable
Tube length 465 mm
Total length (lG ) 550 mm
Material (contact and coupling electrode) Zamak

Product 758022 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

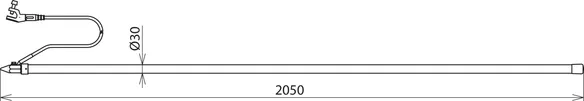

Discharge Device with Earth Clamp with Wing Bolt

1 Product

Part No. 758001 EV TS 2000 EK

GTIN 4013364004030, Customs tariff No. (EU): 85369095, Gross weight: 3.22 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 2000 mm
Total length (lG ) 2050 mm
Clamping range Up to 20 mm
Material (contact electrode) Cu alloy/gal Sn

Product 758001 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

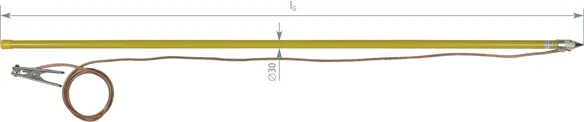

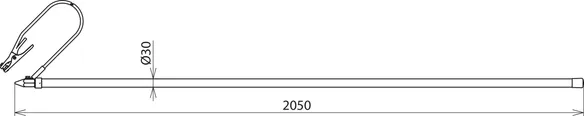

Discharge Device with Spring-loaded Earth Pliers

1 Product

Part No. 758003 EV TS 2000 EZ

GTIN 4013364004047, Customs tariff No. (EU): 85369095, Gross weight: 2.95 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 2000 mm
Total length (lG ) 2050 mm
Clamping range Rd / Fl up to Ø16 mm / to 13 mm
Material (contact electrode) Cu alloy/gal Sn
*) Check according to own data

Product 758003 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

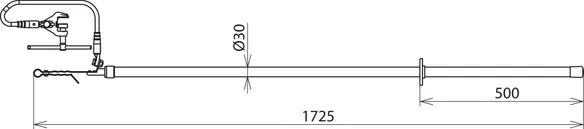

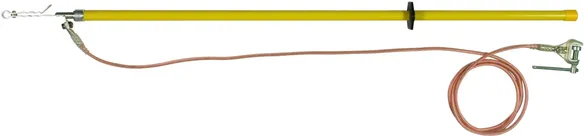

Earthing Device with Earth Clamp with Tommy Bar

For round conductors (Ø12 ... 26.5 mm) of electrostatic precipitator systems

1 Product

Part No. 758015 EV EH 1725 EK

GTIN 4013364041608, Customs tariff No. (EU): 85369095, Gross weight: 3.62 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 25 mm2
Cable sheath Transparent
Tube length 1500 mm
Total length (lG ) 1725 mm
Clamping range Up to 30 mm
Material (coupling electrode) Bronze/gal Sn

Product 758015 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

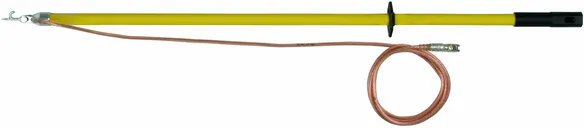

Discharge Device with Contact and Coupling Electrode and Cable Lug at the Earth Cable End

PK1 anti-rotation crimped cable lug (hole Ø12.5 mm).

1 Product

Part No. 758025 EV TES STK 1500 KS

GTIN 4013364127838, Customs tariff No. (EU): 85369095, Gross weight: 2.29 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 1310 mm
Total length (lG ) 1500 mm
Material (contact and coupling electrode) Zamak

Product 758025 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

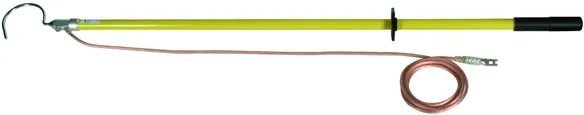

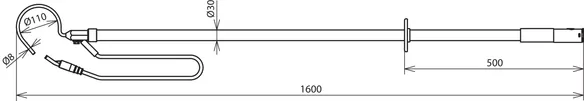

Discharge Device with Clamp and Cable Lug at the Earth Cable End

PK1 anti-rotation crimped cable lug (hole Ø12.5 mm).

1 Product

Part No. 758028 EV EHB 1600 SN7114

GTIN 4013364132450, Customs tariff No. (EU): 85369095, Gross weight: 5.16 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length 3500 mm
Cable cross-section 16 mm2
Cable sheath Transparent
Tube length 1310 mm
Total length (lG ) 1600 mm
Material (bracket) StSt

Product 758028 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

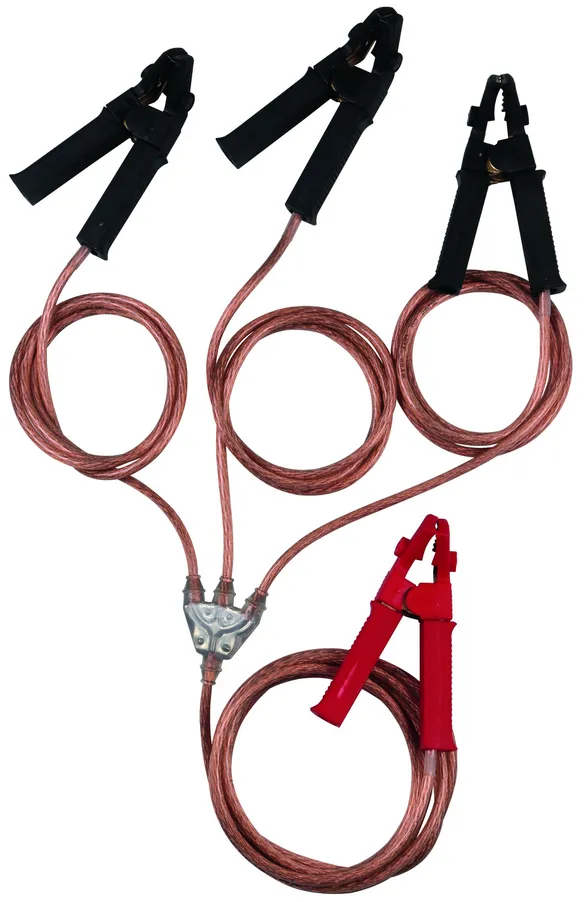

Equipotential Bonding Device with Insulated Earth Clamps

1 Product

Part No. 758099 PAV 3+1 16 ZAK

GTIN 4013364287587, Customs tariff No. (EU): 85369095, Gross weight: 3.21 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Cable length (A / B / C) 1750 mm
Cable length (D) 3200 mm
Cable cross-section 16 mm2
Cable sheath transparent
Clamping range 5-25 mm

Product 758099 was added to Notepad.

Go to Notepad

??store.webshop.add.feedback_de??

??store.webshop.goTo_de??

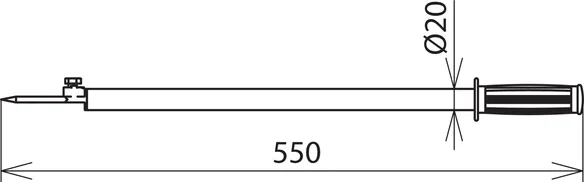

Discharge Device with Handle, without Earth Cable

1 Product

Part No. 758036 EV TES 465 SN7215

GTIN 4013364133884, Customs tariff No. (EU): 85369095, Gross weight: 1.35 kg, PU: 1.00 pc(s)

Images

Additional information
