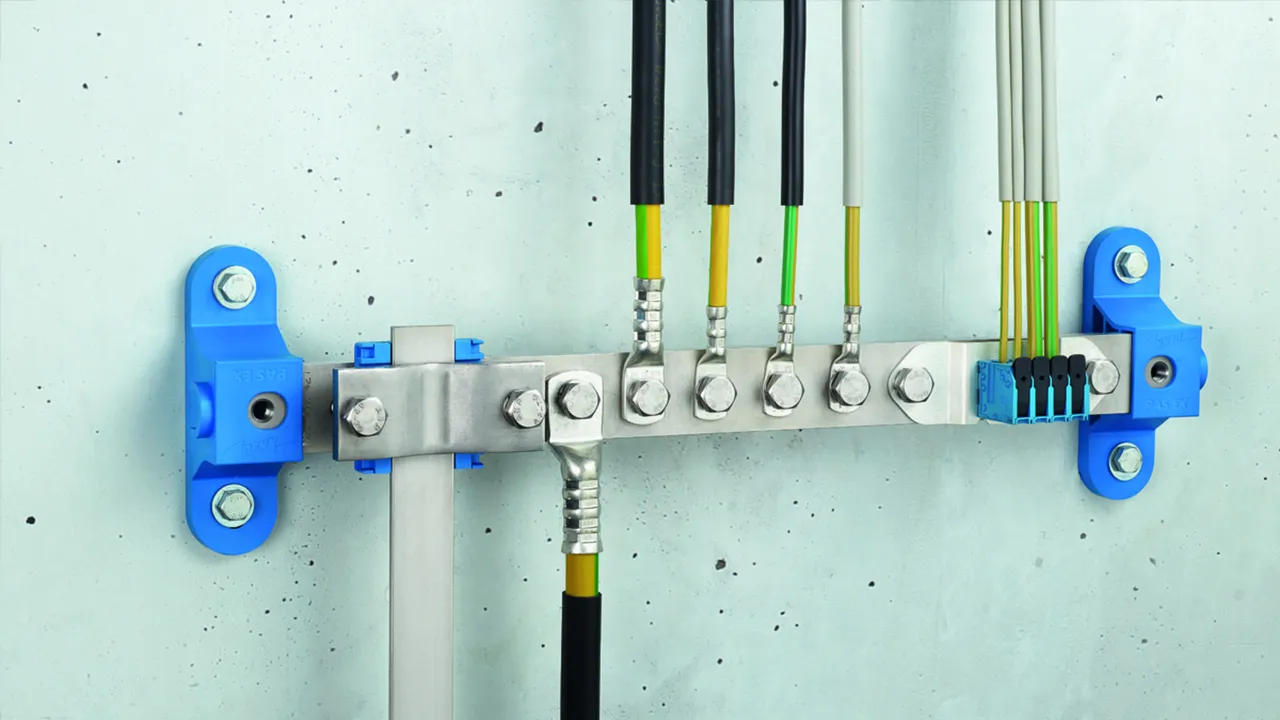

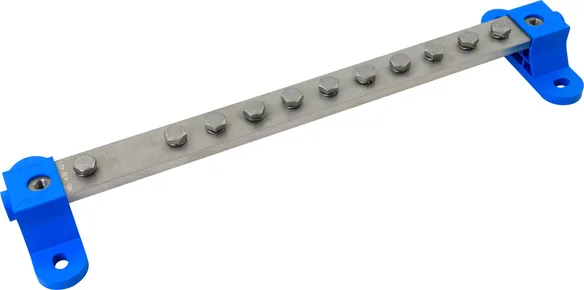

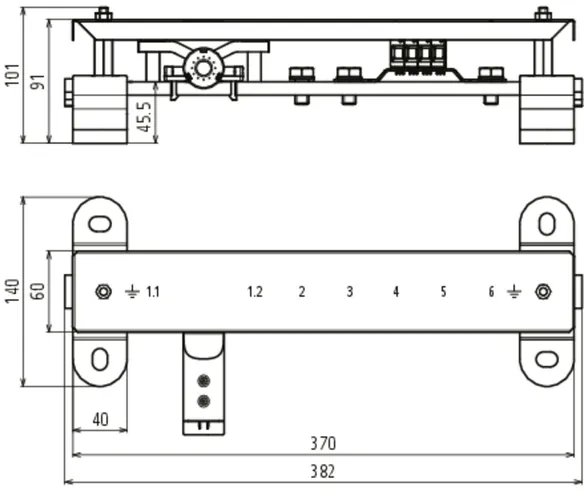

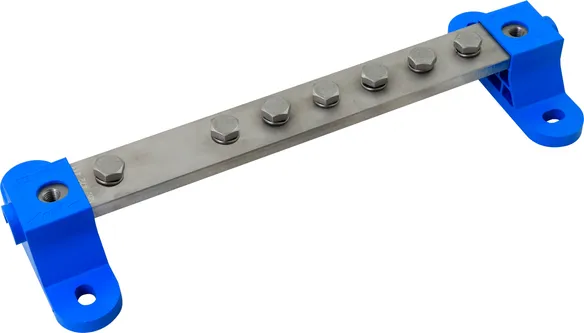

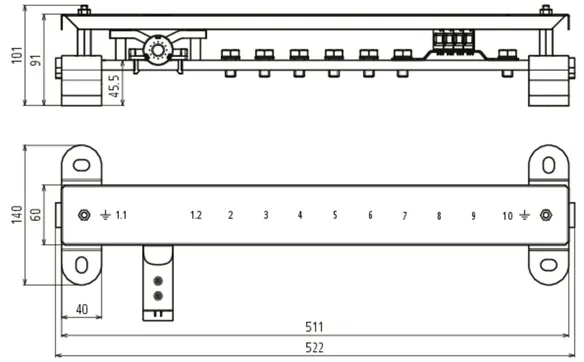

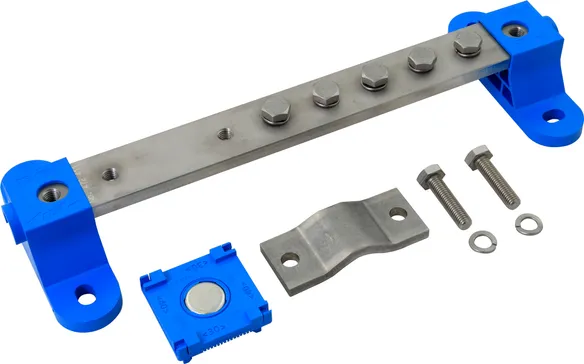

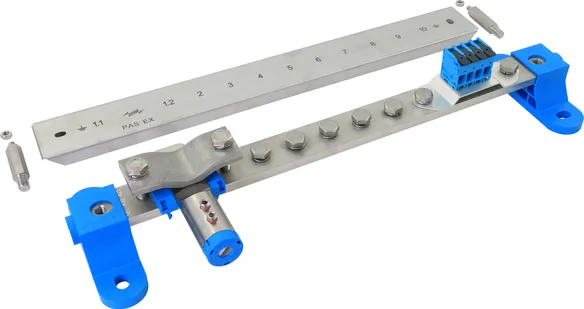

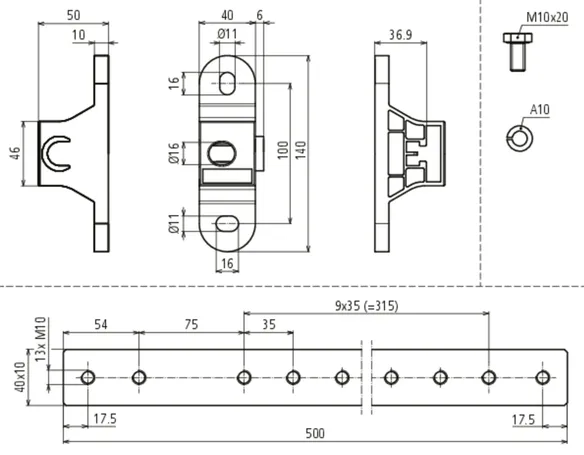

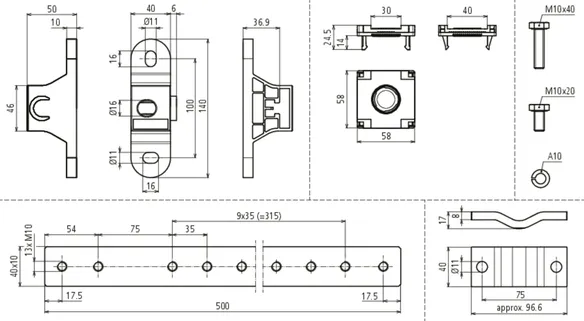

Non-sparking, Ex equipotential bonding bar for hazardous areas of zones 1/21, 2/22

Non-sparking, Ex equipotential bonding bar for integrating metallic conductors and wires into the lightning equipotential bonding according to VDE 0185-305-3 (IEC 62305-3) as well as for protective and functional equipotential bonding according to DIN VDE 0100 Part 410/540.

Use in potentially explosive areas Ex zones 1/21 and 2/22
For use up to explosion group IIC and temperature class T4
Tested for non-ignition according to CLC 50703-2 up to 100 kA
Lightning current carrying capability Class H
Screws secured against self-loosening according to VDE 0185-305-3 Supplement 2

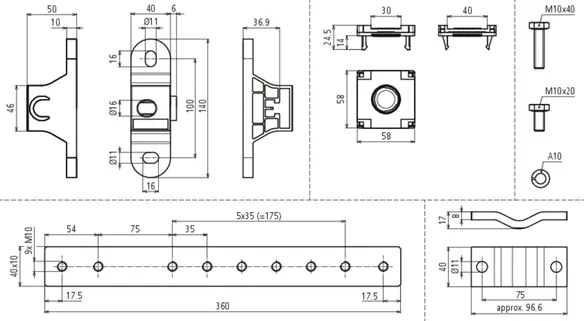

Flexible configuration for implementing different types of connection possibilities

Further information

Similar topics

Equipotential bonding EX-DS380-DE

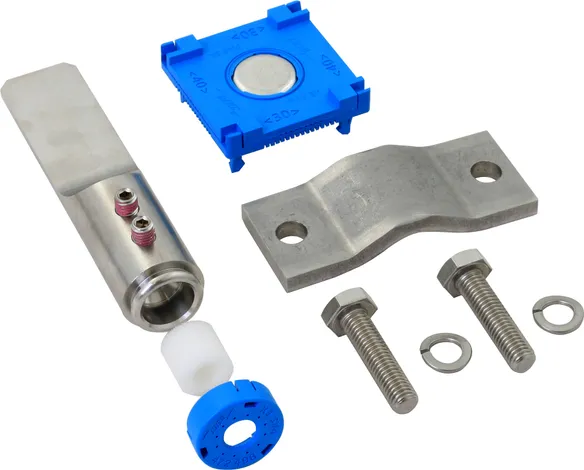

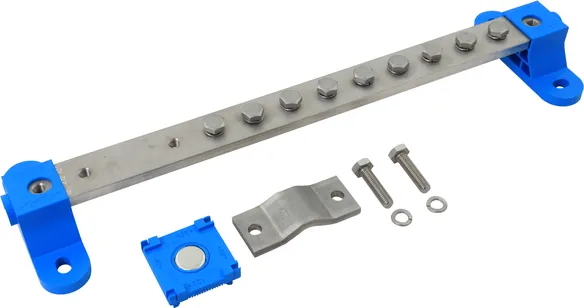

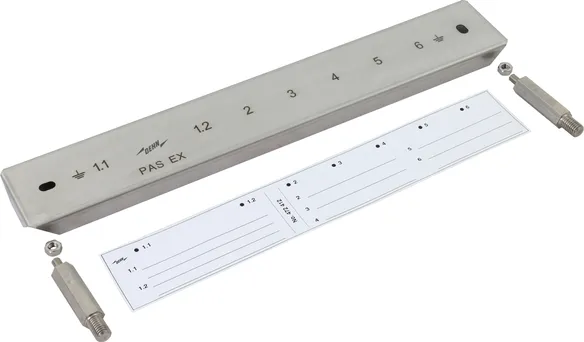

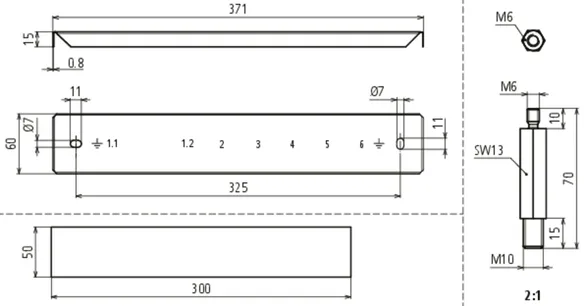

PAS EX 7(11)AP SET

For use in potentially explosive areas of Ex zones 1 and 2 (gases, vapours, mists) up to explosion group IIC as well as Ex zones 21 and 22 (dusts).
Screws secured against self-loosening

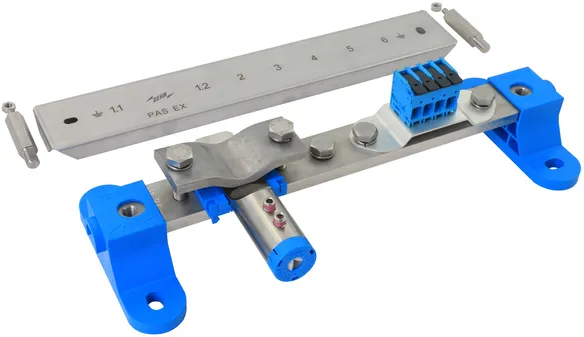

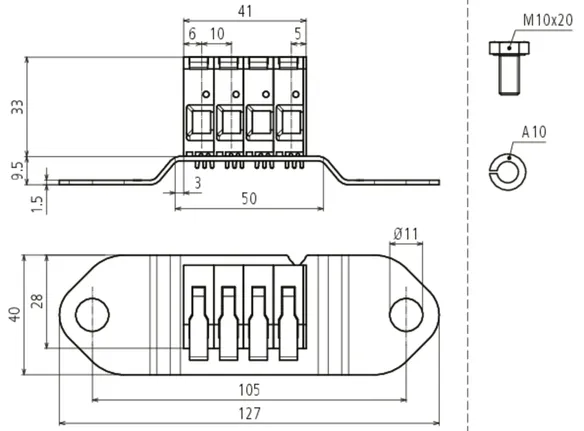

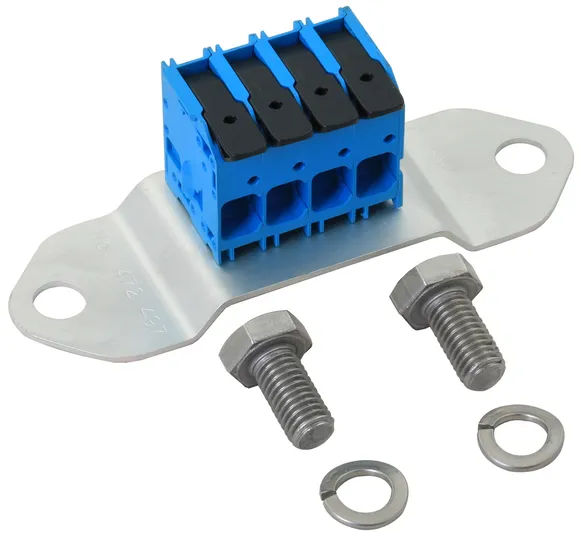

With the push-in adapter, only indoor use is permissible

2 Products
